Automotive Ethernet PHY, 1-channel, 10/100Mbps data rate, supporting full duplex operation. Features a 3.3V operating supply voltage range of 3.135V to 3.465V, with a maximum supply current of 58.3mA. Encased in a 48-pin LQFP package, this surface mount component operates between 0°C and 70°C. RoHS compliant and lead-free.
PackageLQFP
Current58.3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8041MLL technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.45mm |
| Interface | Ethernet |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 58.3mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 58.3A |
| Supply Voltage-Nom | 3.465V |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8041MLL Datasheet
Download the complete datasheet for Microchip KSZ8041MLL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

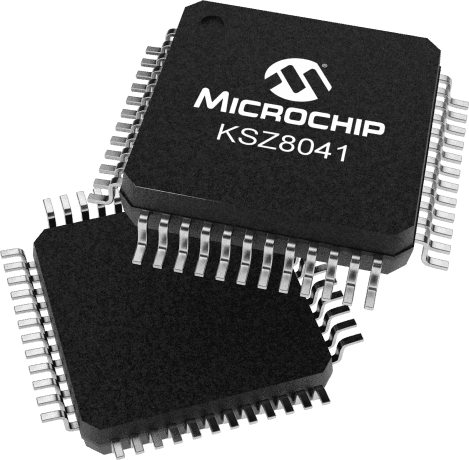

Product Images
