100Mbps Ethernet transceiver, QFN package, supporting full-duplex communication. Features a 3.3V operating supply voltage with a range of 3.135V to 3.465V and a maximum supply current of 58.3mA. Designed for surface mount applications with dimensions of 5mm x 5mm x 0.85mm. Operates within a temperature range of 0°C to 70°C. RoHS compliant and supplied in tape and reel packaging.
PackageQFN
Current53mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8041NL-TR technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Height | 0.85mm |
| Length | 5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 58.3mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 53mA |
| Supply Voltage-Nom | 3.465V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8041NL-TR Datasheet
Download the complete datasheet for Microchip KSZ8041NL-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

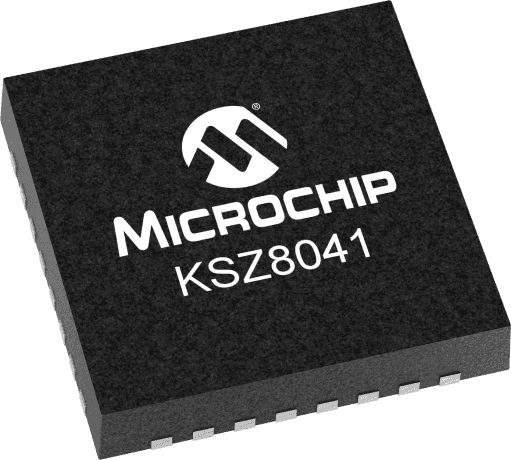

Product Images
