Automotive Ethernet PHY, 1-channel, 10/100Mbps data rate, full duplex operation. Features a 48-pin TQFP surface mount package with dimensions of 7mm x 7mm x 1mm. Operates with a 3.3V supply voltage (3.135V to 3.465V) and a maximum supply current of 53mA. Suitable for automotive applications with an operating temperature range of 0°C to 70°C. RoHS compliant and lead-free.
PackageTQFP
Current58.3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8041TL technical specifications.
General
Package/Case
TQFP
Data Rate
100Mbps
Height
1mm
Interface
Ethernet
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
53mA
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Channels
1
Number of Functions
1
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
58.3A
Supply Voltage-Nom
3.465V
Termination
SMD/SMT
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8041TL Datasheet
Download the complete datasheet for Microchip KSZ8041TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

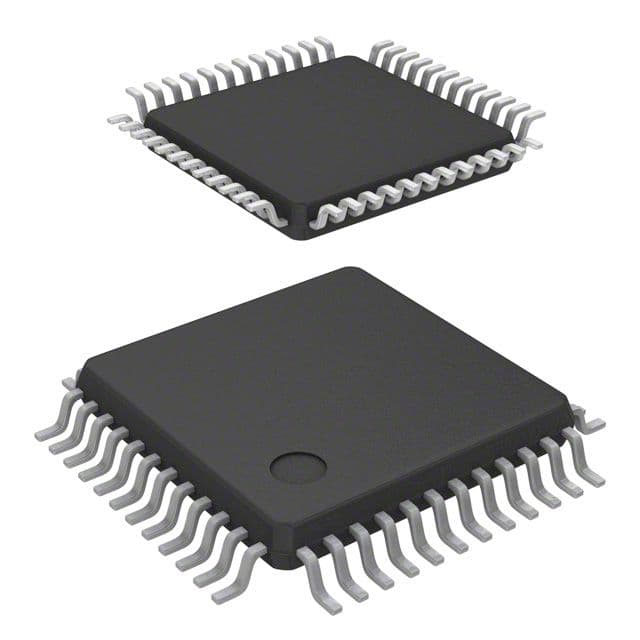

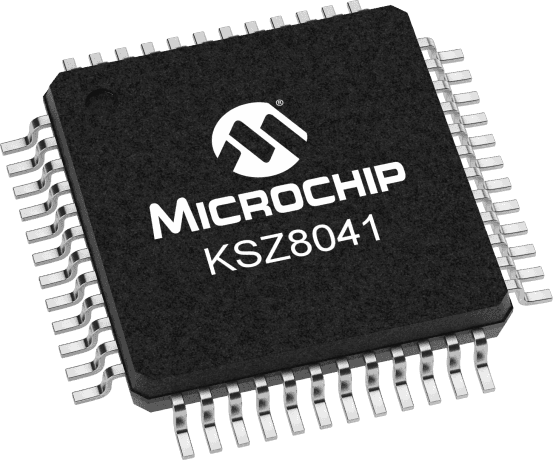

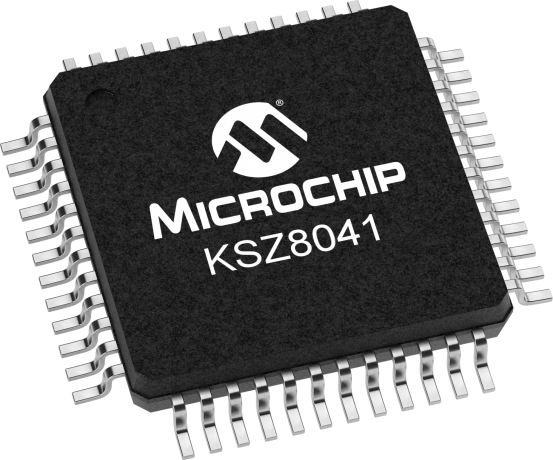

Product Images
