100Mbps Ethernet Transceiver, TQFP package, supporting full-duplex communication. Features a wide operating temperature range of -40°C to 85°C and a 3.3V operating supply voltage. This lead-free, RoHS-compliant integrated circuit is designed for surface mount applications and comes packaged on tape and reel.
PackageTQFP
Current58.3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8041TLI-TR technical specifications.
General
| Package/Case | TQFP |
| Data Rate | 100Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 58.3A |
| Supply Voltage-Nom | 3.465V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8041TLI-TR Datasheet
Download the complete datasheet for Microchip KSZ8041TLI-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

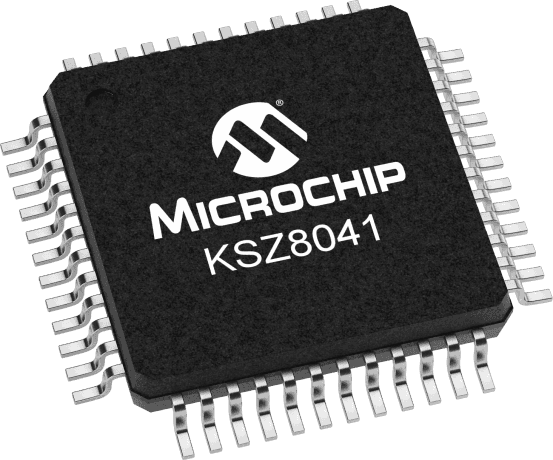

Product Images
