Single-channel Ethernet PHY supporting 10/100Mbps data rates. This surface-mount QFN package component operates at a 3.3V supply voltage, with a range of 3.135V to 3.465V. It features full-duplex communication and a maximum supply current of 47mA. Designed for reliable operation across a temperature range of -40°C to 85°C, this RoHS-compliant integrated circuit is supplied in tape and reel packaging.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8081MNXIA-TR technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 47mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Functions | 2 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Voltage-Nom | 3.4V |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8081MNXIA-TR Datasheet
Download the complete datasheet for Microchip KSZ8081MNXIA-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

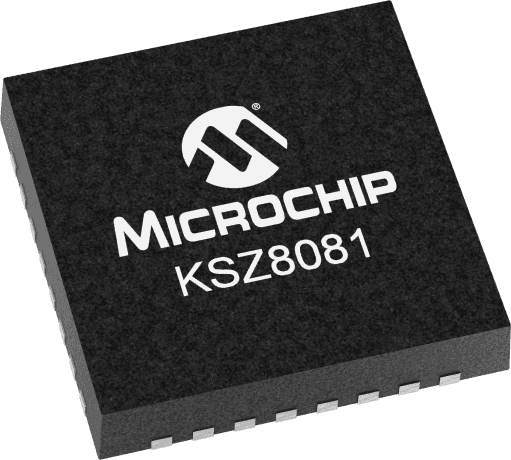

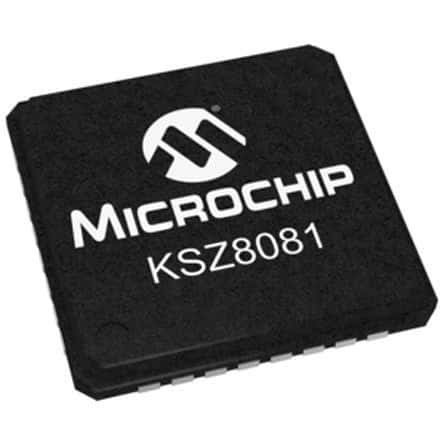

Product Images
