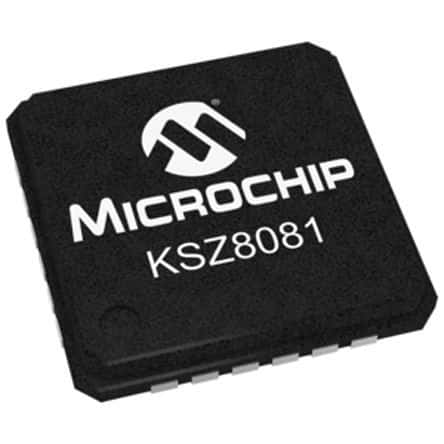

The KSZ8081RNAIATR is a single-chip Ethernet transceiver from Microchip, operating within a temperature range of -40°C to 85°C. It features a QFN package with dimensions of 4mm x 4mm x 0.83mm. The device is RoHS compliant and has a maximum supply current of 47mA. It supports a data rate of 100Mbps and is designed for full-duplex operation. The transceiver is suitable for use in network interface applications.
Microchip KSZ8081RNAIATR technical specifications.
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Height | 0.83mm |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 47mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Width | 4mm |
| RoHS | Compliant |
No datasheet is available for this part.
