Single-channel Ethernet PHY supporting 10Mbps and 100Mbps data rates. Features a 48-pin LQFP package for surface mounting, operating from a 2.97V to 3.63V supply range with a nominal 3.3V. This component offers full-duplex communication and operates within a temperature range of -40°C to 85°C. Supplied in trays with 250 units, it is RoHS compliant.
PackageLQFP
Current151mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8721BLI technical specifications.
General
Package/Case
LQFP
Data Rate
100Mbps
Height
1.4mm
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
151mA
Max Supply Voltage
3.63V
Min Supply Voltage
2.97V
Mount
Surface Mount
Number of Channels
1
Number of Functions
1
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
151mA
Supply Voltage-Nom
3.3V
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8721BLI Datasheet
Download the complete datasheet for Microchip KSZ8721BLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

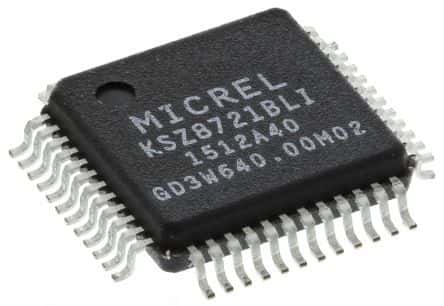

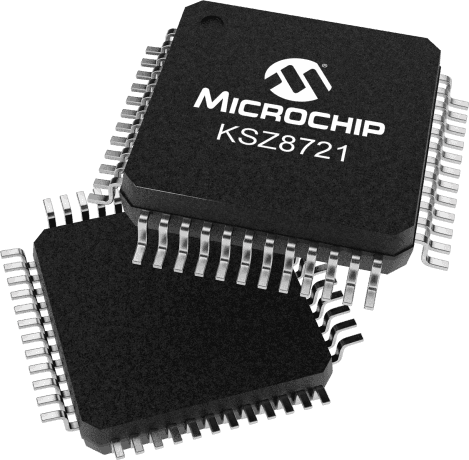

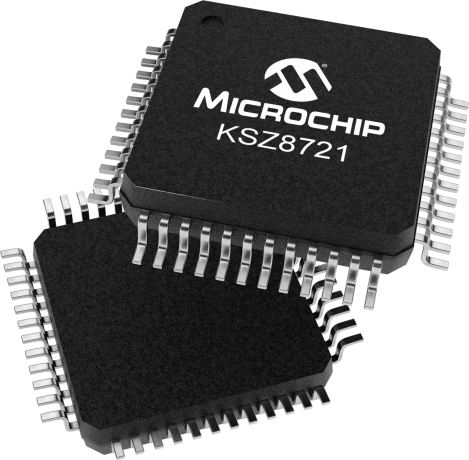

Product Images
