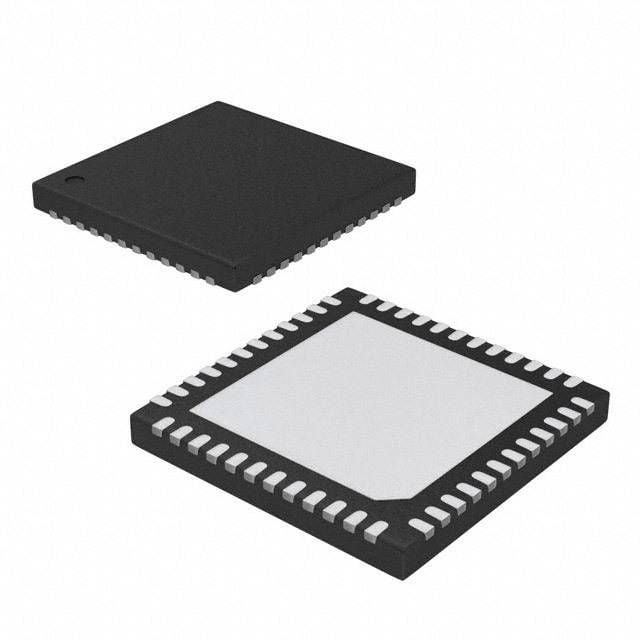

The KSZ9031RNXCA is a 1000Mbps Ethernet PHY from Microchip, packaged in a QFN with a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It has a single channel and four receivers, and is designed to operate at a supply voltage of 3.3V. The device is lead-free and RoHS compliant, and is packaged in a tray with 260 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip KSZ9031RNXCA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Data Rate | 1000Mbps |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.3V |
| Number of Channels | 1 |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Number of Transceivers | 1 |
| Package Quantity | 260 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Voltage-Nom | 3.3V |
| Width | 7mm |
| RoHS | Compliant |
