Gigabit Ethernet PHY, 1-channel, supporting 10Mbps, 100Mbps, and 1Gbps data rates. Features a 48-pin QFN package with dimensions of 7mm x 7mm x 0.85mm. Operates with a supply voltage range of 1.14V to 3.465V, nominal 3.3V, and a maximum supply current of 221mA. Includes 4 drivers and 4 receivers for full-duplex communication. RoHS compliant and lead-free, with an operating temperature range of -40°C to 85°C. Supplied in a tray of 260 units.
PackageQFN
Quick Jump:
Technical Specifications
Microchip KSZ9031RNXIA technical specifications.
General
Package/Case
QFN
Data Rate
1000Mbps
Height
0.85mm
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
221mA
Max Supply Voltage
3.465V
Min Supply Voltage
1.14V
Number of Channels
1
Number of Drivers
4
Number of Receivers
4
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
260
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Voltage-Nom
3.3V
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ9031RNXIA Datasheet
Download the complete datasheet for Microchip KSZ9031RNXIA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

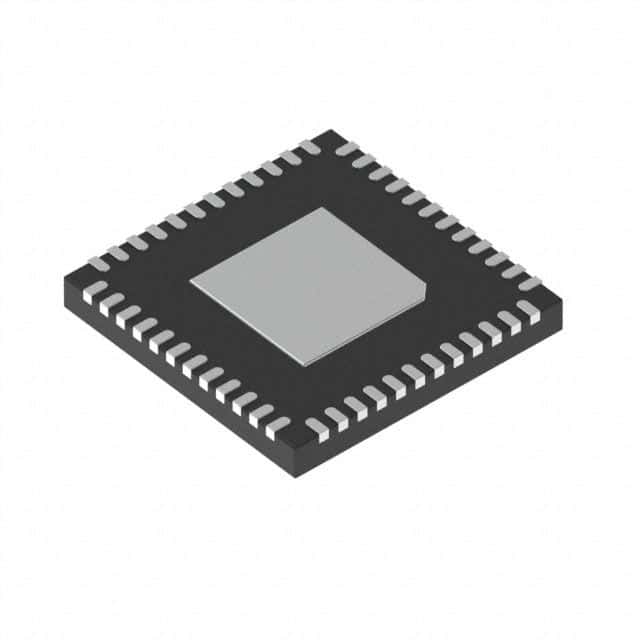

Product Images
