1-Channel Ethernet PHY, supporting 10Mbps and 100Mbps data rates. Features a 3.3V operating supply voltage with a range of 3V to 3.6V. Packaged in a 36-pin VQFN (QFN) surface mount configuration. Operates within a temperature range of -40°C to 85°C. Lead-free and supplied in a tray of 490 units.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip LAN8700IC-AEZG technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 81.6mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Supply Voltage-Nom | 3.6V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip LAN8700IC-AEZG Datasheet
Download the complete datasheet for Microchip LAN8700IC-AEZG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

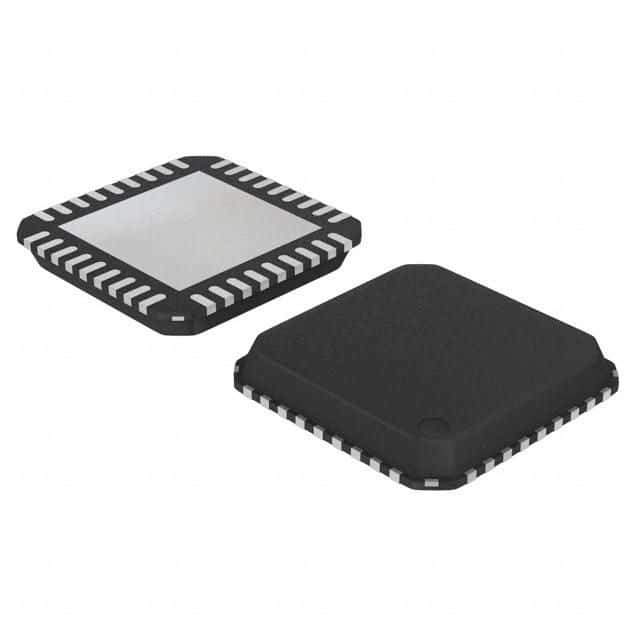

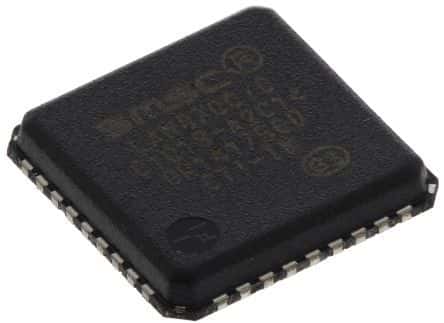

Product Images
