Single-channel, 10/100Mbps Ethernet PHY for surface mount applications. Features a 1.8V to 3.3V supply voltage range and operates from -40°C to 85°C. This 24-pin SQFN EP package offers a 1mm height and is supplied on tape and reel.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip LAN8742A-CZ-TR technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Height | 1mm |
| Interface | Ethernet |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Transceivers | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | flexPWR™ |
Compliance
| RoHS | Compliant |
Datasheet
Microchip LAN8742A-CZ-TR Datasheet
Download the complete datasheet for Microchip LAN8742A-CZ-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

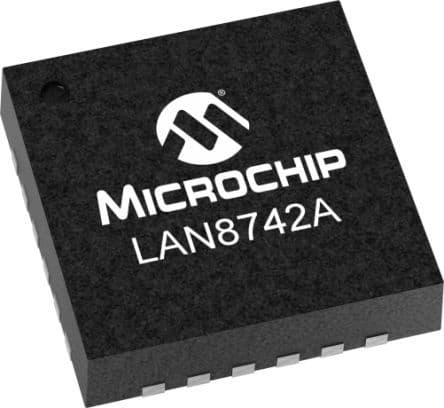

Product Images
