Single-chip Ethernet controller supporting 10Mbps and 100Mbps data rates. Features a parallel interface and a single transceiver. Operates at 3.3V with a supply voltage range of 3.135V to 3.465V and a maximum supply current of 140mA. Packaged in a 128-pin QFP (14mm x 20mm x 3.05mm) for surface mounting. RoHS compliant and lead-free, with an operating temperature range of -40°C to 85°C.
PackageQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip LAN91C111I-NS technical specifications.
General
Package/Case
QFP
Data Rate
100Mbps
Height
3.05mm
Interface
Parallel
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
140mA
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
66
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Weight
0.032985oz
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip LAN91C111I-NS Datasheet
Download the complete datasheet for Microchip LAN91C111I-NS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

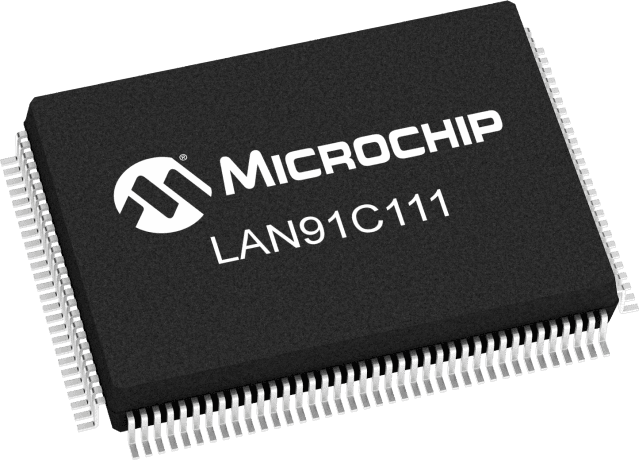

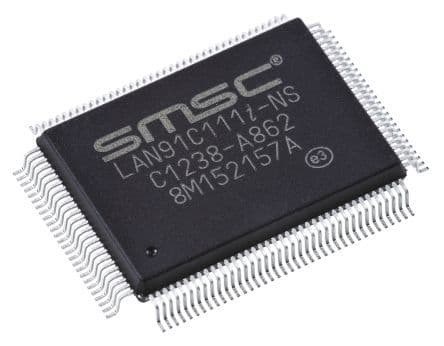

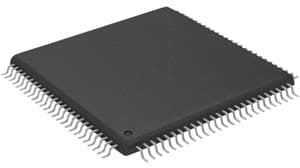

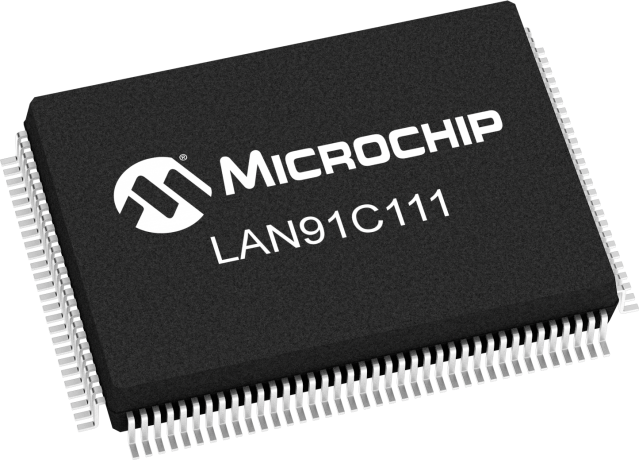

Product Images
