Ethernet Transceiver IC, QFN-72 package, supporting 100Mbps data rates. Features an I2C interface and operates from a 3V to 3.6V supply voltage, with a typical supply current of 190mA. Designed for surface mounting, this component offers an operating temperature range of -40°C to 85°C.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip LAN9303MI-AKZE technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Interface | I2C |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 190mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Transceivers | 1 |
| Operating Supply Current | 190mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 260 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | No |
Compliance
| RoHS | Compliant |
Datasheet
Microchip LAN9303MI-AKZE Datasheet
Download the complete datasheet for Microchip LAN9303MI-AKZE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

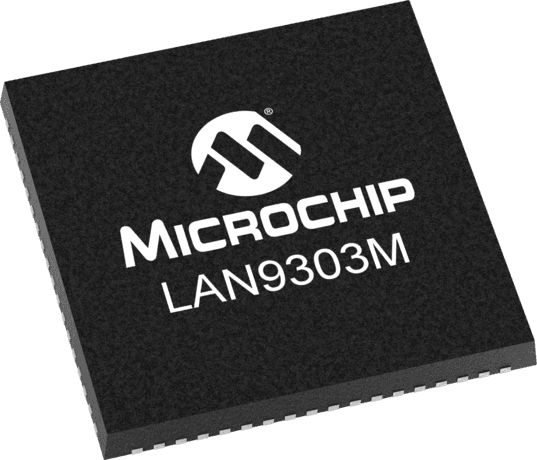

Product Images
