High-performance 2-channel serial communication controller featuring a 480Mbps data rate and USB interface. This integrated circuit offers dual ports and operates at a 3.3V supply voltage with a maximum power dissipation of 763mW. Packaged in a QFN form factor with a height of 1mm, it supports an operating temperature range of 0°C to 70°C. RoHS compliant and supplied on tape and reel.
PackageQFN
Quick Jump:
Technical Specifications
Microchip LAN9512-JZX-TR technical specifications.
General
| Package/Case | QFN |
| Data Rate | 480Mbps |
| Height | 1mm |
| Interface | USB |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 763mW |
| Number of Ports | 2 |
| Operating Supply Current | 231mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip LAN9512-JZX-TR Datasheet
Download the complete datasheet for Microchip LAN9512-JZX-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

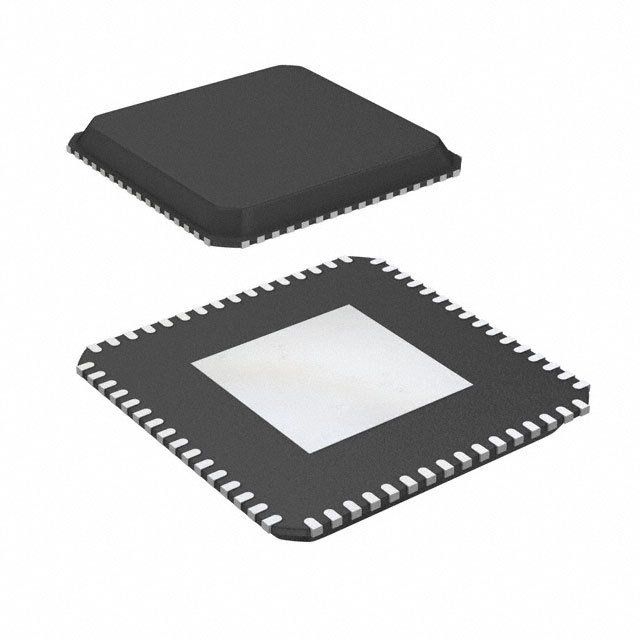

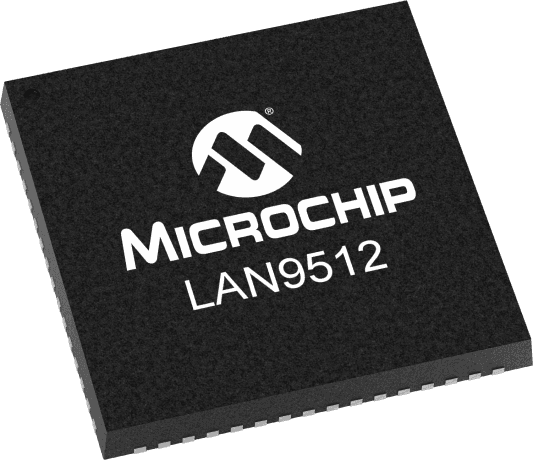

Product Images
