Ethernet Controller IC with integrated USB 2.0 functionality. Features a single Ethernet transceiver and three ports, supporting data rates up to 1.5Mbps. Operates with a supply voltage range of 3V to 3.6V, nominal 3.3V, and a maximum power dissipation of 763mW. Packaged in a 64-pin QFN (9.1mm x 9.1mm x 0.95mm) for surface mounting. RoHS compliant and lead-free, with an operating temperature range of -40°C to 85°C.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip LAN9512I-JZX technical specifications.
General
Package/Case
QFN
Data Rate
1.5Mbps
Height
0.95mm
Interface
USB, Ethernet
Lead Free
Lead Free
Length
9.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
763mW
Max Supply Current
188mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
3
Number of Transceivers
1
Operating Supply Current
231mA
Operating Supply Voltage
3.3V
Package Quantity
260
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Voltage-Nom
3.3V
Width
9.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip LAN9512I-JZX Datasheet
Download the complete datasheet for Microchip LAN9512I-JZX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

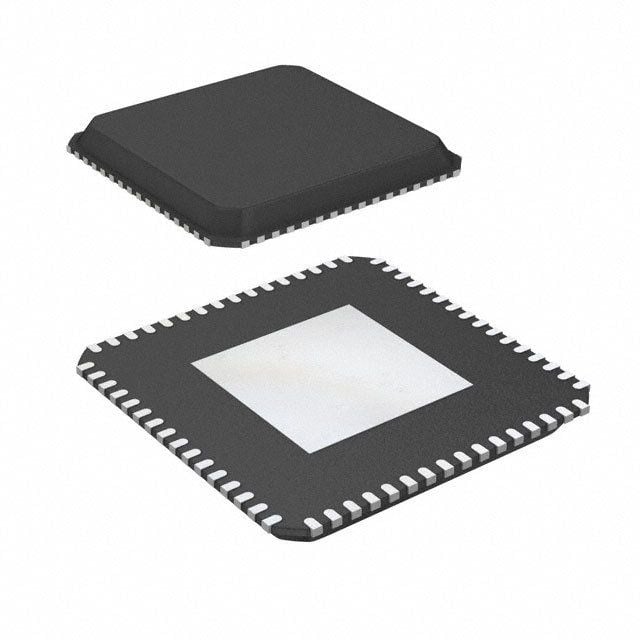

Product Images
