Ethernet Controller IC, QFN package, supporting USB 2.0 interface and 100Mbps data rates. Features a 3.3V nominal operating supply voltage, with a range of 3V to 3.6V. Operates across a temperature range of -40°C to 85°C. Designed for surface mount applications and is lead-free.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip LAN9513I-JZX technical specifications.
General
| Package/Case | QFN |
| Data Rate | 100Mbps |
| Interface | USB |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 260 |
| Packaging | Tray |
| Radiation Hardening | No |
| Supply Voltage-Nom | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip LAN9513I-JZX Datasheet
Download the complete datasheet for Microchip LAN9513I-JZX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

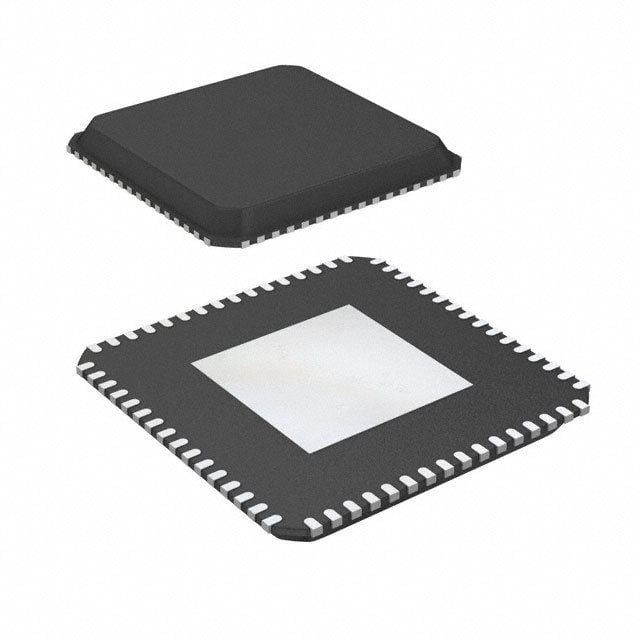

Product Images
