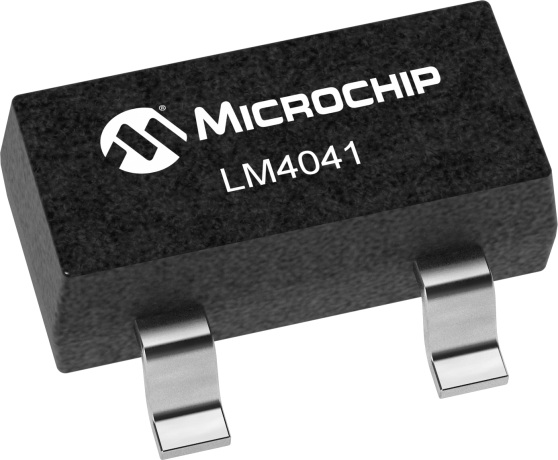

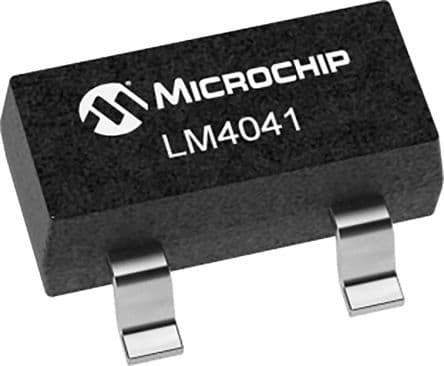

Adjustable voltage reference IC, offering a 1.24V to 10V output range with a maximum output current of 12mA. This shunt reference features a low supply current of 500nA and a cathode current of 65µA. Packaged in a 3-pin SOT-23 surface-mount configuration, it operates within a temperature range of -40°C to 85°C and boasts a 0.5% tolerance. The component is RoHS compliant and supplied in tape and reel packaging.
Sign in to ask questions about the Microchip LM4041CYM3-ADJ-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip LM4041CYM3-ADJ-TR technical specifications.
| Package/Case | SOT-23 |
| Cathode Current | 65uA |
| Current Rating | 12mA |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12mA |
| Max Output Voltage | 10V |
| Min Output Voltage | 1.233V |
| Max Power Dissipation | 306mW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 12mA |
| Output Type | Adjustable |
| Output Voltage | 10V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt |
| Reference Voltage | 10V |
| RoHS Compliant | Yes |
| Supply Current | 500nA |
| Tolerance | 0.5% |
| Width | 1.4mm |
| RoHS | Compliant |
