10V positive linear voltage regulator, surface mount, TO-243AA package. Features a nominal output voltage of 10V with a fixed output type, and a maximum output current of 30mA. Operates with an input voltage range of 15V to 450V, and offers a maximum power dissipation of 1.6W. Includes a power supply rejection ratio (PSRR) of 60dB and a quiescent current of 150uA. Packaged in tape and reel, this lead-free component has dimensions of 4.6mm length, 2.6mm width, and 1.6mm height.
PackageTO-243AA
Voltage10V
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip LR645N8-G technical specifications.
General
| Package/Case | TO-243AA |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Min Current Limit | 30mA |
| Max Input Voltage | 450V |
| Min Input Voltage | 15V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 30mA |
| Max Output Voltage | 12V |
| Min Output Voltage | 8V |
| Max Power Dissipation | 1.6W |
| Max Supply Voltage | 450V |
| Min Supply Voltage | 15V |
| Mount | Surface Mount |
| Nominal Output Voltage | 10V |
| Nominal Supply Current | 50uA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 3mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 10V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 1.6W |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Quiescent Current | 150uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Voltage | 10V |
| Width | 2.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip LR645N8-G Datasheet
Download the complete datasheet for Microchip LR645N8-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

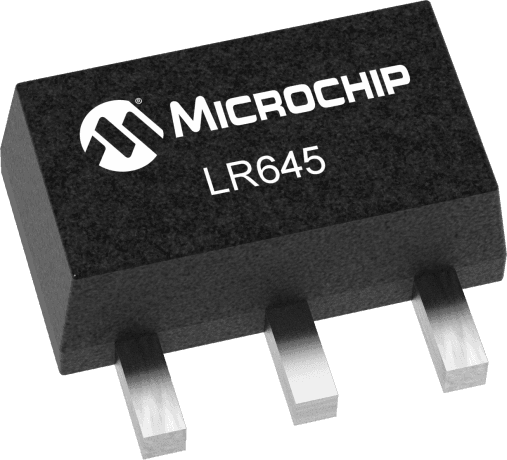

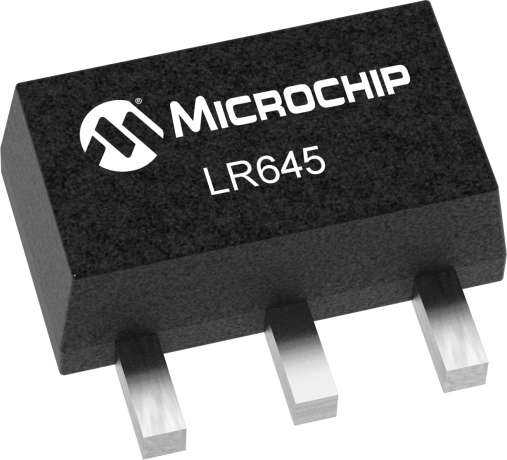

Product Images
