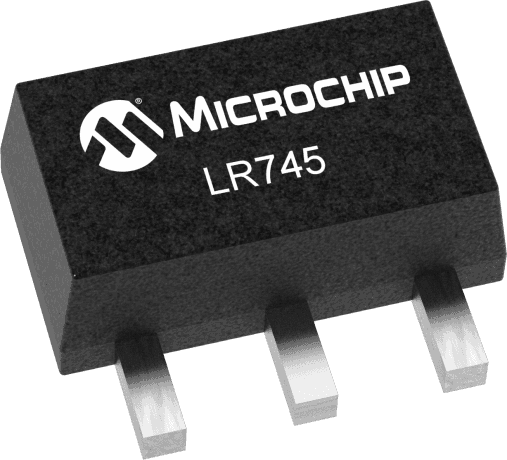

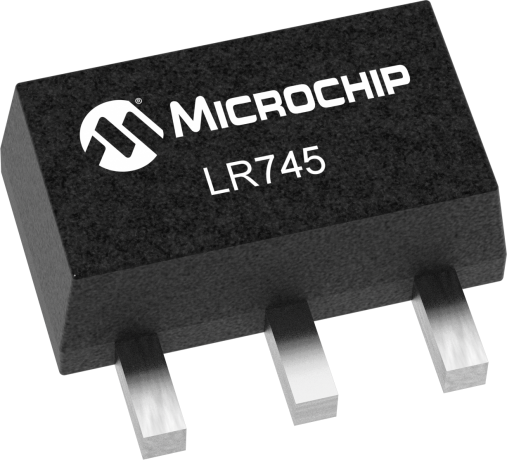

The LR745N8-G is a surface mount power IC with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It operates at a supply voltage of 450V and a supply current of 500uA. The device has an output voltage of 25V and an output current of 3mA. It is packaged in a SOT-89 case and is available in quantities of 2000 on tape and reel. The device is RoHS compliant and not radiation hardened.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip LR745N8-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-89 |
| Length | 4.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Operating Supply Current | 500uA |
| Operating Supply Voltage | 450V |
| Output Current | 3mA |
| Output Voltage | 25V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Microchip LR745N8-G to view detailed technical specifications.
