Technical Specifications
Microchip LR8N3-G-P003 technical specifications.
General
| Package/Case | TO-226-3 |
| Max Input Voltage | 450V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 438V |
| Min Output Voltage | 1.2V |
| Mount | Through Hole |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 10mA |
| Output Type | Adjustable |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip LR8N3-G-P003 Datasheet
Download the complete datasheet for Microchip LR8N3-G-P003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

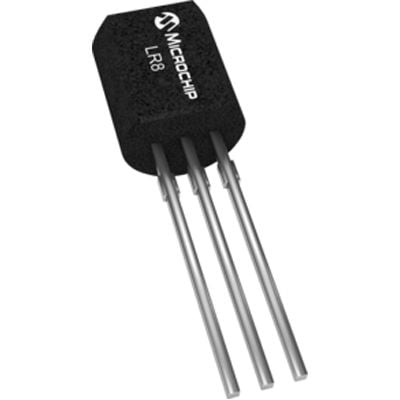

Product Images
