MCP101-300DI/TO

Datasheet

1-CH Power-On Reset IC, 2.85V-3V Threshold, TO-92, Active High

Microchip

MCP101-300DI/TO

Name: MCP101-300DI/TO Microchip
Brand: Microchip
SKU: MCP101-300DI/TO

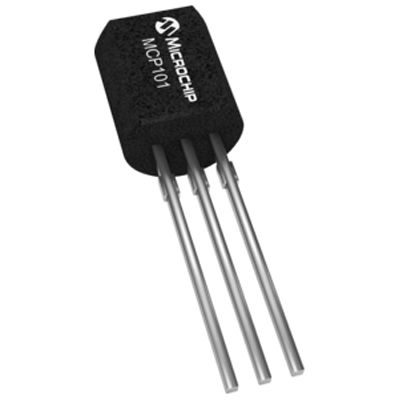

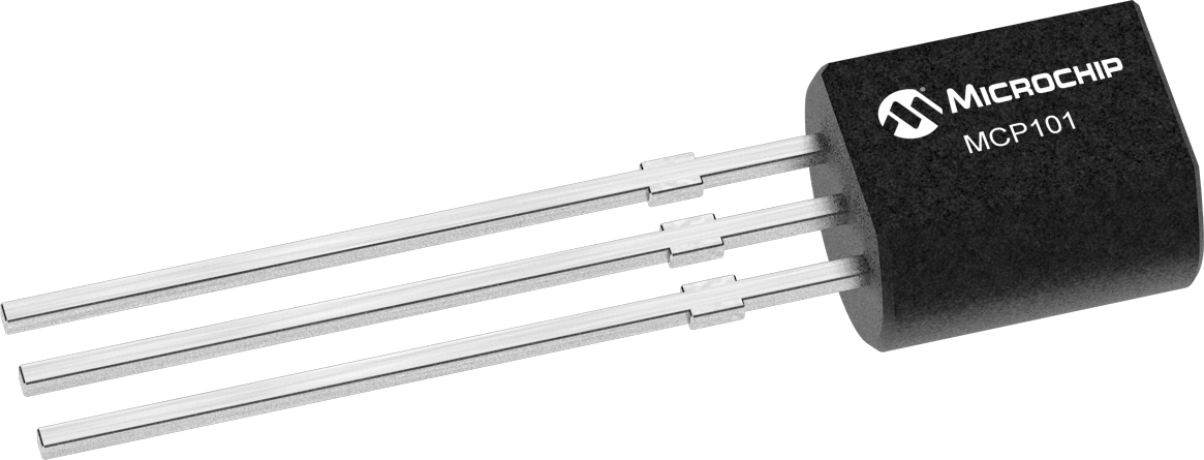

1-CH Power-On Reset IC, 2.85V-3V Threshold, TO-92, Active High

1-channel power supply support circuit, TO-92 package, 3-pin, through-hole mount. Features a reset threshold voltage range of 2.85V to 3V, with an undervoltage threshold of 2.85V and overvoltage threshold of 3V. Operates with a supply voltage from 1V to 5.5V, drawing a maximum supply current of 60µA. Includes active-high reset with a 150ms timeout. RoHS compliant and lead-free.

PackageTO-92

Current60uA

MountingThrough Hole

Quick Jump:

Technical Specifications

Microchip MCP101-300DI/TO technical specifications.

General

Package/Case	TO-92
Height	0.195inch
Lead Free	Lead Free
Length	0.194inch
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Reset Threshold Voltage	3V
Min Reset Threshold Voltage	2.85V
Max Supply Current	60uA
Max Supply Voltage	5.5V
Min Supply Voltage	1V
Mount	Through Hole
Number of Elements	1
Number of Voltages Monitored	1
Operating Supply Current	60uA
Output	TOTEM-POLE
Overvoltage Threshold	3V
Package Quantity	1000
Packaging	Bulk
Quiescent Current	45uA
Reach SVHC Compliant	No
Reset	Active High
Reset Timeout	150ms
RoHS Compliant	Yes
Supply Current	60uA
Threshold Voltage	2.925V
Type	Simple Reset/Power-On Reset
Undervoltage Threshold	2.85V
Watchdog Timer	No
Width	0.155inch
