This supervisory circuit monitors a single voltage with a threshold of 4.625V, featuring a 4.75V overvoltage and 4.5V undervoltage threshold, accurate to -5%. It provides an active high, TOTEM-POLE output and operates within a 1V to 5.5V supply voltage range, consuming a maximum of 60uA supply current. The component is housed in a 3-pin TO-92 package for through-hole mounting, with a reset timeout of 150ms. Operating from -40°C to 85°C, this RoHS compliant component is suitable for power-on reset applications.
PackageTO-92
Current60uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP101-475DI/TO technical specifications.
General
Accuracy
-5%
Package/Case
TO-92
Height
4.62mm
Lead Free
Lead Free
Length
4.71mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.75V
Min Reset Threshold Voltage
4.5V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
60uA
Output
TOTEM-POLE
Overvoltage Threshold
4.75V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
45uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active High
Reset Timeout
150ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
4.625V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.5V
Watchdog Timer
No
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP101-475DI/TO Datasheet
Download the complete datasheet for Microchip MCP101-475DI/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

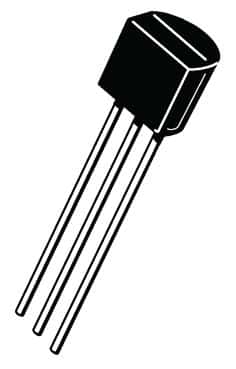

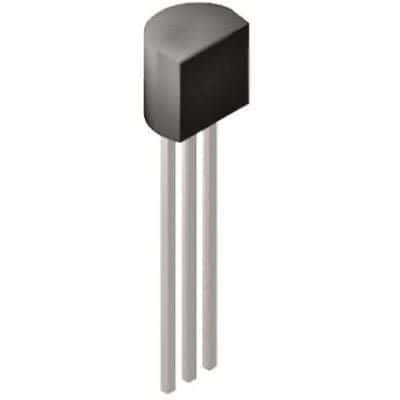

Product Images
