Surface mount, 3-pin, SOT-23 package power management IC featuring a single-channel, simple reset/power-on reset function. Operates with a supply voltage range of 1V to 5.5V, drawing a maximum of 60µA supply current. Monitors a single voltage with a reset threshold voltage of 2.625V (2.55V min, 2.7V max). Offers an active high reset output with a 150ms reset timeout. Designed for operation between -40°C and 85°C, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSOT-23
Current45uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP101T-270I/TT technical specifications.
General
| Package/Case | SOT-23 |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 2.7V |
| Min Reset Threshold Voltage | 2.55V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.7V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 45uA |
| Reach SVHC Compliant | No |
| Reset | Active High |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Supply Current | 45uA |
| Threshold Voltage | 2.625V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.55V |
| Watchdog Timer | No |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP101T-270I/TT Datasheet
Download the complete datasheet for Microchip MCP101T-270I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

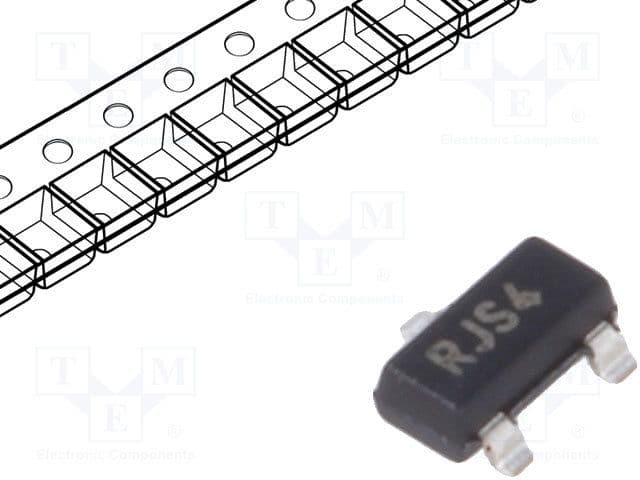

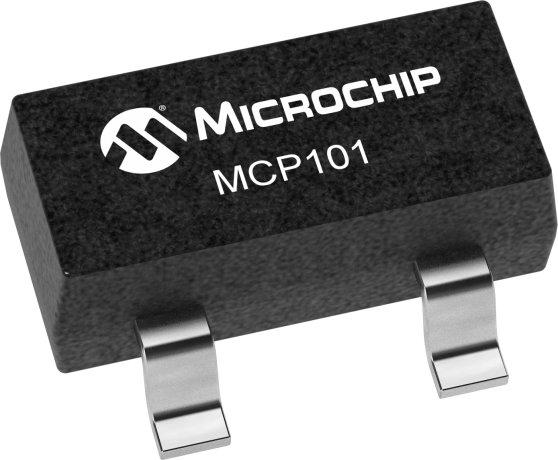

Product Images
