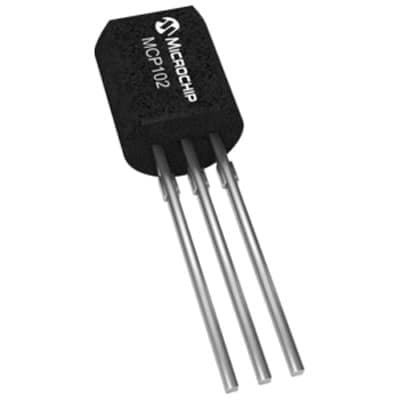

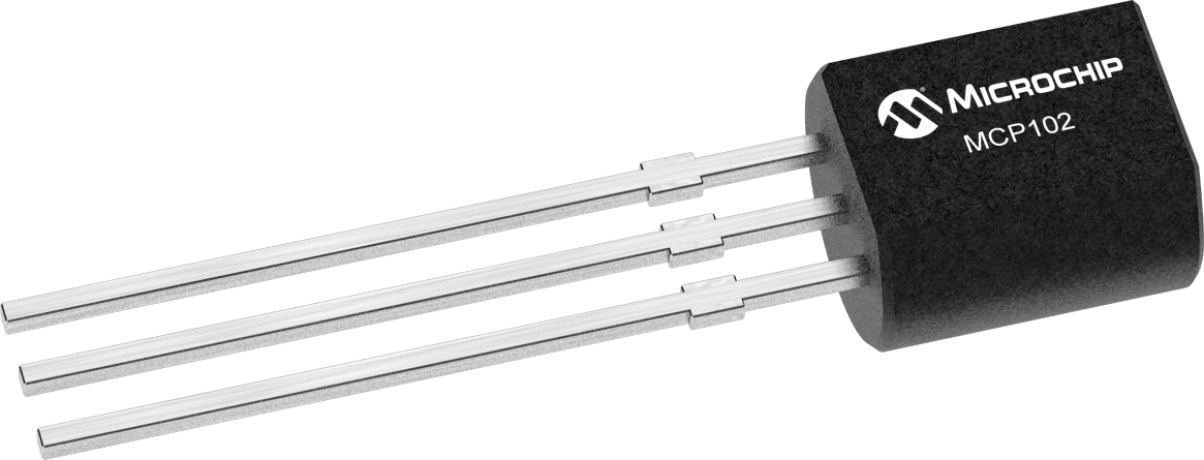

This 3-pin, TO-92 packaged integrated circuit functions as a single-channel power supply support circuit. It features an active-low, totem-pole output and monitors one voltage with a threshold voltage of 2.63V, with reset thresholds ranging from 2.591V to 2.67V. Operating within a supply voltage range of 1V to 5.5V, this lead-free component exhibits a low quiescent current of 1µA and a maximum supply current of 1.75µA. The reset timeout is 80ms, and the device operates across a temperature range of -40°C to 125°C.
PackageTO-92
Current1uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP102-270E/TO technical specifications.
General
| Package/Case | TO-92 |
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 4.95mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 2.67V |
| Min Reset Threshold Voltage | 2.591V |
| Max Supply Current | 1.75uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Through Hole |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 1.75uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.67V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Quiescent Current | 1uA |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 80ms |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Threshold Voltage | 2.63V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.591V |
| Watchdog Timer | No |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP102-270E/TO Datasheet
Download the complete datasheet for Microchip MCP102-270E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
