Supervisory circuit IC with a 2.93V threshold voltage, featuring active-low reset and a 80ms reset timeout. This power management IC operates from 1V to 5.5V with a low 1.75µA supply current. The TO-92 package supports through-hole mounting and is RoHS compliant. Monitors a single voltage with a totem-pole output.
PackageTO-92
Current1uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP102-300E/TO technical specifications.
General
Package/Case
TO-92
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.974V
Min Reset Threshold Voltage
2.866V
Max Supply Current
1.75uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Voltages Monitored
1
Operating Supply Current
1.75uA
Output
TOTEM-POLE
Overvoltage Threshold
2.974V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
1uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
80ms
RoHS Compliant
Yes
Supply Current
1uA
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.866V
Watchdog Timer
No
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP102-300E/TO Datasheet
Download the complete datasheet for Microchip MCP102-300E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

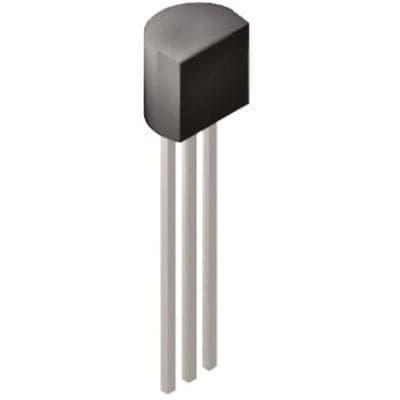

Product Images
