Supervisory circuit IC with a 2.93V threshold voltage, featuring active-low totem-pole output. This surface mount component operates from 1V to 5.5V supply voltage, consuming a maximum of 1.75µA supply current. It monitors a single voltage with reset thresholds ranging from 2.866V to 2.974V and a reset timeout of 80ms. Packaged in a compact SC-70 case (1mm height, 2.25mm length, 1.35mm width), this lead-free, RoHS-compliant device is supplied on tape and reel.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP102T-300E/LB technical specifications.
General
| Package/Case | SC |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.25mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 2.974V |
| Min Reset Threshold Voltage | 2.866V |
| Max Supply Current | 1.75uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 1.75uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.974V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1uA |
| Reset | Active Low |
| Reset Timeout | 80ms |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.93V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.866V |
| Watchdog Timer | No |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP102T-300E/LB Datasheet
Download the complete datasheet for Microchip MCP102T-300E/LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

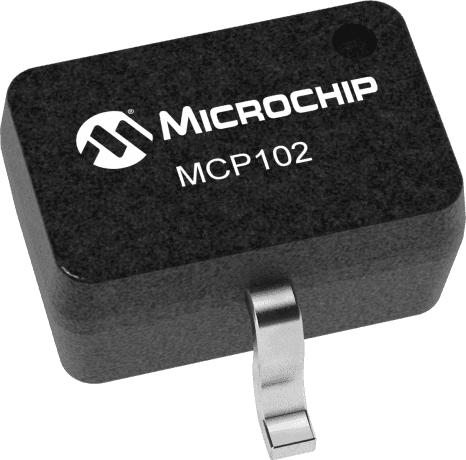

Product Images
