Surface mount, 3-pin, lead-free power management IC designed for single-channel power supply monitoring. Features a reset threshold voltage of 3.08V, with a minimum undervoltage threshold of 3.034V and a maximum overvoltage threshold of 3.126V. Operates within a supply voltage range of 1V to 5.5V, consuming a maximum supply current of 1.75µA. Includes an active-low reset output with an 80ms reset timeout. Suitable for applications requiring simple reset or power-on reset functionality.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP103T-315E/LB technical specifications.
General
Package/Case
SC
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
3.126V
Min Reset Threshold Voltage
3.034V
Max Supply Current
1.75uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
1.75uA
Output
TOTEM-POLE
Overvoltage Threshold
3.126V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1uA
Reset
Active Low
Reset Timeout
80ms
RoHS Compliant
Yes
Threshold Voltage
3.08V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.034V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Microchip MCP103T-315E/LB Datasheet
Download the complete datasheet for Microchip MCP103T-315E/LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

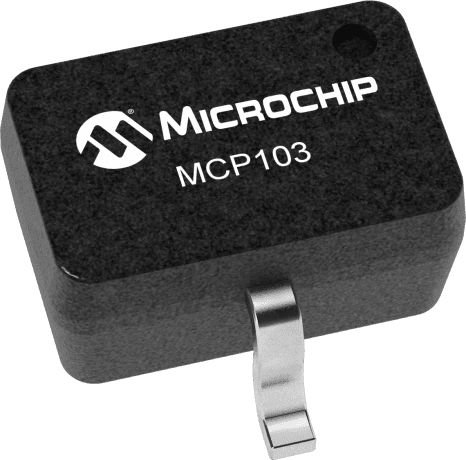

Product Images
