Surface mount voltage detector IC with active-low reset, monitoring a single voltage. Features a 3.08V threshold voltage, with undervoltage at 3.034V and overvoltage at 3.126V. Operates from 1V to 5.5V supply voltage, drawing a maximum of 1.75µA quiescent current. Packaged in a 3-pin SC-70 plastic package, measuring 2.25mm x 1.35mm x 1mm, with a maximum operating temperature of 125°C.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP111T-315E/LB technical specifications.
General
Package/Case
SC
Height
1mm
Lead Free
Lead Free
Length
2.25mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Reset Threshold Voltage
3.126V
Min Reset Threshold Voltage
3.034V
Max Supply Current
1.75uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
1.75uA
Output Type
Voltage
Overvoltage Threshold
3.126V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
RoHS Compliant
Yes
Threshold Voltage
3.08V
Type
Simple Reset/Power-On Reset, Voltage Detector
Undervoltage Threshold
3.034V
Watchdog Timer
No
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP111T-315E/LB Datasheet
Download the complete datasheet for Microchip MCP111T-315E/LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

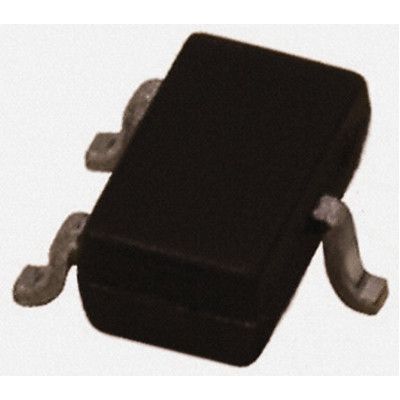

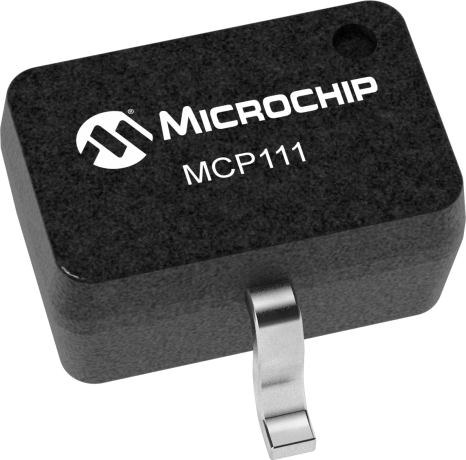

Product Images
