MCP111T-315E/TT

Datasheet

3.126V Voltage Detector IC, SOT-23, 1-Ch, Active Low Reset

Microchip

MCP111T-315E/TT

Name: MCP111T-315E/TT Microchip
Brand: Microchip
SKU: MCP111T-315E/TT
Price: 0.84 USD
Availability: InStock

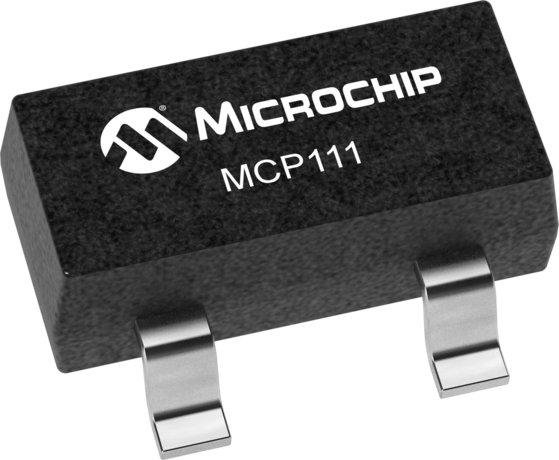

3.126V Voltage Detector IC, SOT-23, 1-Ch, Active Low Reset

Surface mount voltage detector IC with active-low reset, monitoring a single voltage. Features a reset threshold voltage of 3.08V, with a minimum of 3.034V and a maximum of 3.126V. Operates within a supply voltage range of 1V to 5.5V, drawing a maximum supply current of 1.75µA. Housed in a 3-pin SOT-23 package, this RoHS compliant component offers a maximum output current of 10mA and operates from -40°C to 125°C.

PackageSOT-23

Current1uA

MountingSurface Mount

Quick Jump:

Pricing & Availability

Distributor	Package Type	Min Qty	30+	72+	287+	1430+	Stock	Action
Quest	-	30	0.84	0.7	0.56	0.49	2,742 In Stock	View

Chat with Datasheet

Technical Specifications

Microchip MCP111T-315E/TT technical specifications.

General

Package/Case	SOT-23
Height	1.02mm
Lead Free	Lead Free
Length	3.04mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	10mA
Max Reset Threshold Voltage	3.126V
Min Reset Threshold Voltage	3.034V
Max Supply Current	1.75uA
Max Supply Voltage	5.5V
Min Supply Voltage	1V
Mount	Surface Mount
Number of Voltages Monitored	1
Operating Supply Current	1.75uA
Output Type	Voltage
Overvoltage Threshold	3.126V
Package Quantity	3000
Packaging	Tape and Reel
Quiescent Current	1uA
Radiation Hardening	No
Reach SVHC Compliant	No
Reset	Active Low
RoHS Compliant	Yes
Supply Current	1uA
Termination	SMD/SMT
Threshold Voltage	3.08V
Type	Simple Reset/Power-On Reset, Voltage Detector
Undervoltage Threshold	3.034V
Watchdog Timer	No
Width	1.4mm
