Surface mount voltage detector IC with active-low, totem-pole output. Monitors a single voltage supply with a threshold range of 1.872V to 1.929V. Features a low operating supply current of 1.75µA and a maximum supply voltage of 5.5V. Packaged in SOT-23-3 (TO-236) plastic, measuring 3.04mm x 1.4mm x 1.02mm, suitable for tape and reel packaging. Operates across a temperature range of -40°C to 85°C and is RoHS compliant.
PackageSOT-23-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP112T-195I/TT technical specifications.
General
Package/Case
SOT-23-3
Height
1.02mm
Lead Free
Lead Free
Length
3.04mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Reset Threshold Voltage
1.929V
Min Reset Threshold Voltage
1.872V
Max Supply Current
1.75uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Voltages Monitored
1
Operating Supply Current
1.75uA
Output
TOTEM-POLE
Output Type
Voltage
Overvoltage Threshold
1.929V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1uA
Reset
Active Low
RoHS Compliant
Yes
Threshold Voltage
1.9V
Type
Simple Reset/Power-On Reset, Voltage Detector
Undervoltage Threshold
1.872V
Watchdog Timer
No
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP112T-195I/TT Datasheet
Download the complete datasheet for Microchip MCP112T-195I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

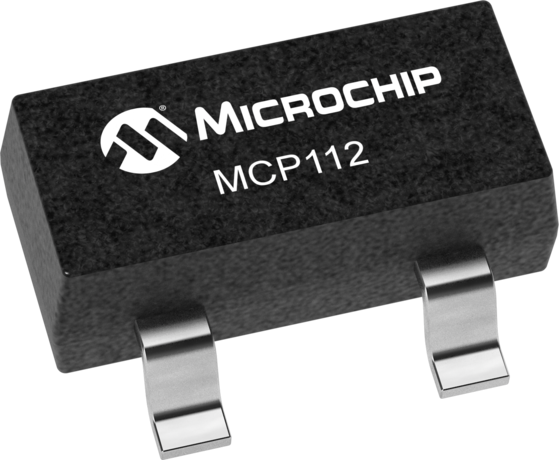

Product Images
