Surface mount voltage detector IC with active-low reset, featuring a 1-channel power supply monitoring capability. Operates within a 1V to 5.5V supply voltage range, with a reset threshold voltage of 2.93V (typ.). Offers a low quiescent current of 1µA and a maximum supply current of 1.75µA. Packaged in a 3-pin SC-70 (SC) plastic package, measuring 2.25mm (L) x 1.35mm (W) x 1mm (H), suitable for tape and reel packaging. RoHS compliant and lead-free, with an operating temperature range of -40°C to 125°C.
PackageSC
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP112T-300E/LB technical specifications.
General
| Package/Case | SC |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.25mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10mA |
| Max Reset Threshold Voltage | 2.974V |
| Min Reset Threshold Voltage | 2.886V |
| Max Supply Current | 1.75uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 1.75uA |
| Output | TOTEM-POLE |
| Output Type | Voltage |
| Overvoltage Threshold | 2.974V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Threshold Voltage | 2.93V |
| Type | Simple Reset/Power-On Reset, Voltage Detector |
| Undervoltage Threshold | 2.886V |
| Watchdog Timer | No |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP112T-300E/LB Datasheet
Download the complete datasheet for Microchip MCP112T-300E/LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

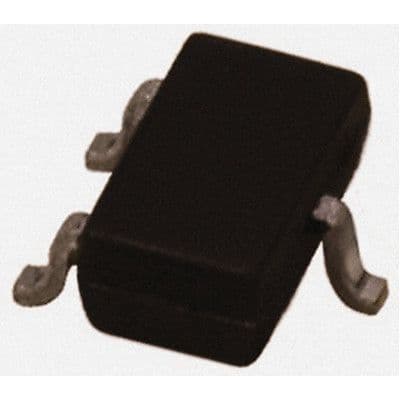

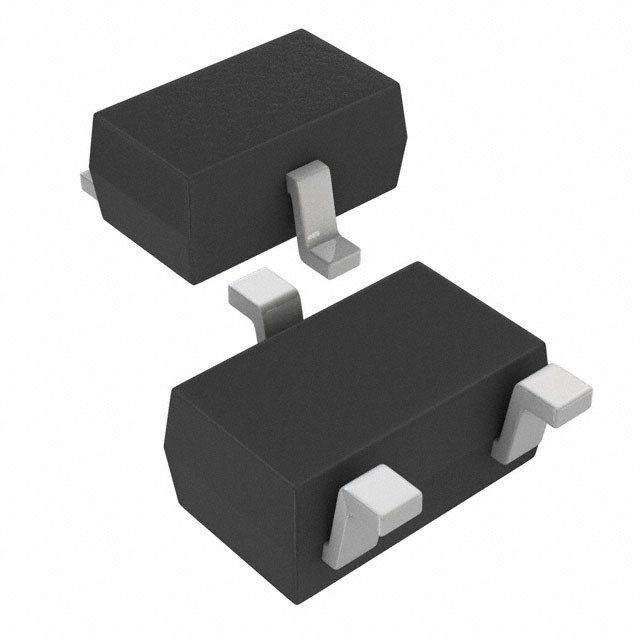

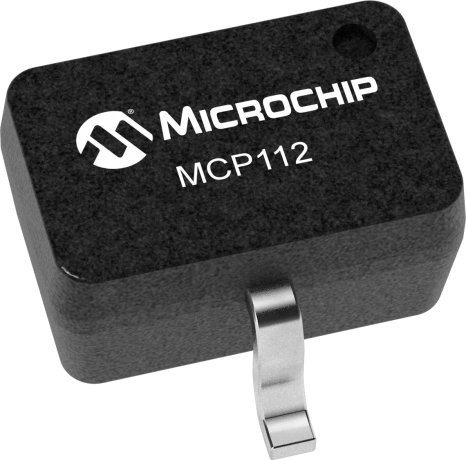

Product Images
