Automotive-grade supervisory circuit with a 3.15V overvoltage threshold and 3V undervoltage threshold. Features a single active-low reset output with a 150ms reset timeout. Operates from a 1V to 5.5V supply voltage with a maximum supply current of 60µA. Packaged in a 3-pin SOT-23 surface-mount case, this RoHS-compliant component is supplied on tape and reel.
PackageSOT-23
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP120T-315I/TT technical specifications.
General
Package/Case
SOT-23
Height
0.04inch
Lead Free
Lead Free
Length
0.119inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
3.15V
Min Reset Threshold Voltage
3V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
60uA
Overvoltage Threshold
3.15V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
45uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
150ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
3.15V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3V
Watchdog Timer
No
Width
0.055inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP120T-315I/TT Datasheet
Download the complete datasheet for Microchip MCP120T-315I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

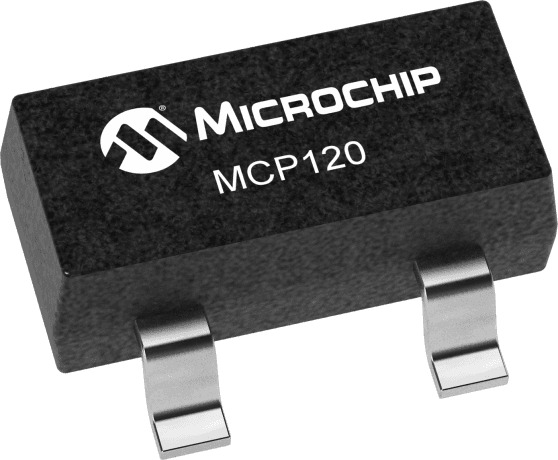

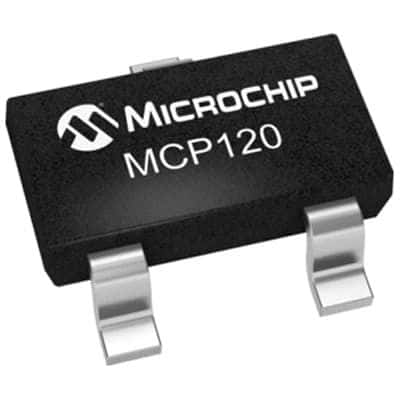

Product Images
