Surface mount power management IC featuring a single-channel simple reset/power-on reset function. Monitors one voltage with a reset threshold range of 2.285V to 2.355V and an active-low reset output with an 80ms timeout. Operates from 1V to 5.5V supply voltage with a low quiescent current of 1µA and a maximum supply current of 20µA. Packaged in a lead-free SOT-23-3 (TO-236) plastic package, measuring 3.04mm x 1.4mm x 1.02mm, suitable for tape and reel packaging. Features a maximum operating temperature of 125°C and a minimum of -40°C.
PackageSOT-23-3
Current20uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP121T-240E/TT technical specifications.
General
Package/Case
SOT-23-3
Height
1.02mm
Lead Free
Lead Free
Length
3.04mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.355V
Min Reset Threshold Voltage
2.285V
Max Supply Current
20uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
20uA
Overvoltage Threshold
2.355V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
80ms
RoHS Compliant
Yes
Supply Current
20uA
Threshold Voltage
2.32V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.285V
Watchdog Timer
No
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP121T-240E/TT Datasheet
Download the complete datasheet for Microchip MCP121T-240E/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

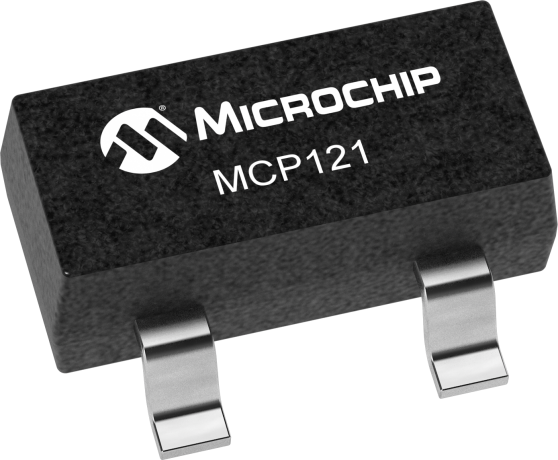

Product Images
