Surface mountable DC/DC controller and regulator IC featuring a 3.3V fixed output voltage and 100mA output current. Operates with a minimum input voltage of 1.8V and a maximum input voltage of 3.6V, utilizing a charge pump and boost topology with a maximum switching frequency of 650kHz. Housed in a compact 3mm x 3.15mm x 0.95mm DFN package, this lead-free component offers a wide operating temperature range from -40°C to 125°C.
PackageDFN
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip MCP1256-E/MF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip MCP1256-E/MF technical specifications.
General
| Package/Case | DFN |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.15mm |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 3.3V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 650kHz |
| Topology | Charge Pump, Boost |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1256-E/MF Datasheet
Download the complete datasheet for Microchip MCP1256-E/MF to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

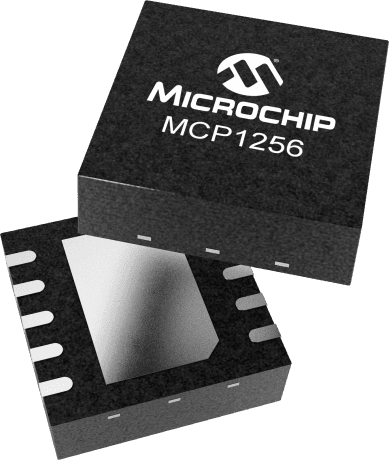

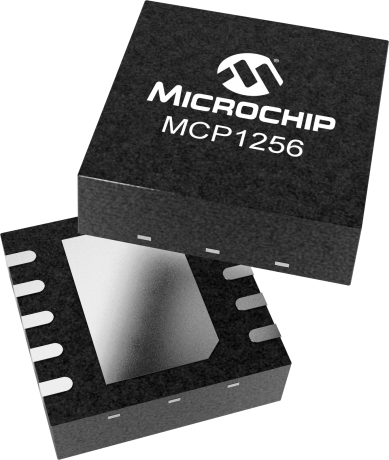

Product Images
