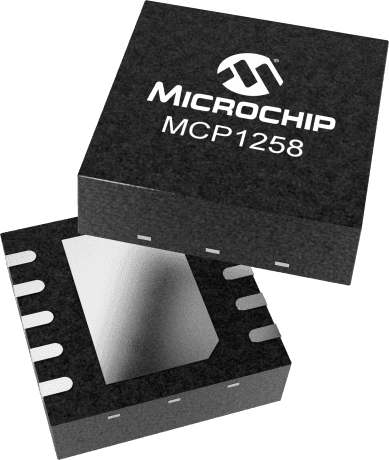

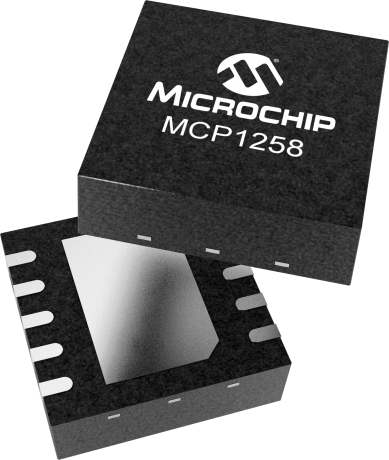

3.3V fixed output DC/DC controller and regulator, surface mount DFN package (3.15mm x 3mm x 0.95mm). Features a 100mA maximum output current and a 650kHz switching frequency. Operates with an input voltage range of 1.8V to 3.6V. This lead-free, RoHS compliant component offers a positive output configuration and is designed for charge pump and boost topologies.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP1258-E/MF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP1258-E/MF technical specifications.
| Package/Case | DFN |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.15mm |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 650kHz |
| Synchronous Rectifier | No |
| Topology | Charge Pump, Boost |
| Width | 3mm |
| RoHS | Compliant |
