Automotive-grade supervisory circuit with a 4.5V reset threshold, accurate to -5%. This surface-mount component features active-low reset and operates from 1V to 5.5V with a low quiescent current of 45uA. Packaged in a 3-pin SOT-23, it monitors a single voltage and offers a 150ms reset timeout. Ideal for power management applications, it is supplied in tape and reel packaging.
PackageSOT-23
Current45uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP130T-450I/TT technical specifications.
General
| Accuracy | -5% |
| Package/Case | SOT-23 |
| Height | 0.04inch |
| Lead Free | Lead Free |
| Length | 0.119inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.5V |
| Min Reset Threshold Voltage | 4.25V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Overvoltage Threshold | 4.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 45uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Supply Current | 45uA |
| Threshold Voltage | 4.5V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | No |
| Width | 0.055inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP130T-450I/TT Datasheet
Download the complete datasheet for Microchip MCP130T-450I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

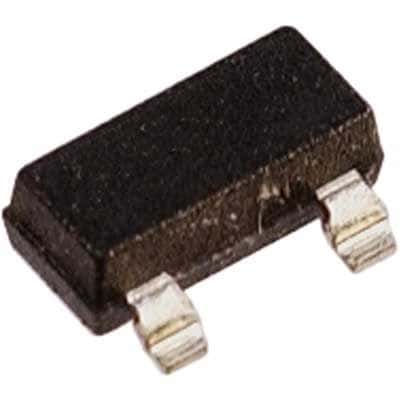

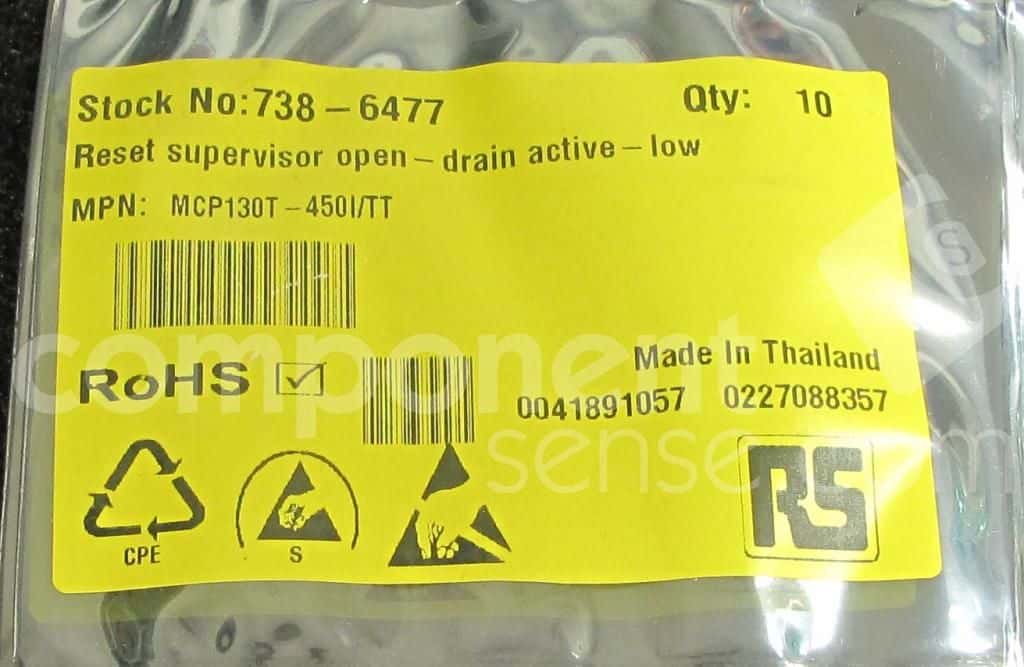

Product Images
