This 1-channel power supply support circuit is a simple reset/power-on reset IC. It features an active-low reset with a reset timeout of 80ms. Operating within a 1V to 5.5V supply voltage range, it monitors a single voltage with a threshold of 2.93V, featuring an undervoltage threshold of 2.866V and an overvoltage threshold of 2.974V. The component offers a low quiescent current of 1µA and a maximum supply current of 90µA. Packaged in a 3-pin TO-92 through-hole mount, it is lead-free and RoHS compliant, with dimensions of 4.95mm (height) x 3.94mm (width) x 4.95mm (length), and operates from -40°C to 125°C.
PackageTO-92
Current1uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP131-300E/TO technical specifications.
General
Package/Case
TO-92
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.974V
Min Reset Threshold Voltage
2.866V
Max Supply Current
90uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Voltages Monitored
1
Operating Supply Current
90uA
Overvoltage Threshold
2.974V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
1uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
80ms
RoHS Compliant
Yes
Supply Current
1uA
Threshold Voltage
2.93V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
2.866V
Watchdog Timer
No
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP131-300E/TO Datasheet
Download the complete datasheet for Microchip MCP131-300E/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

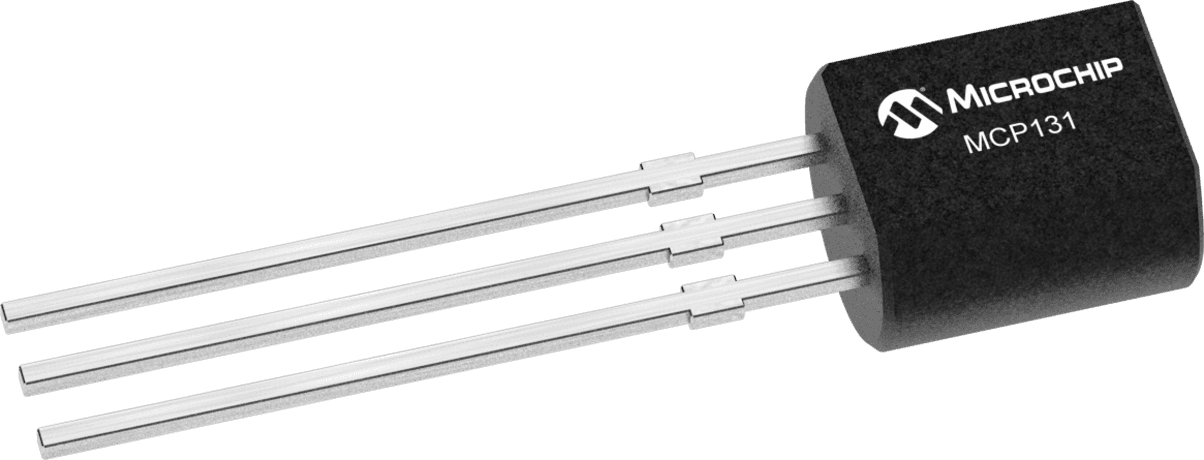

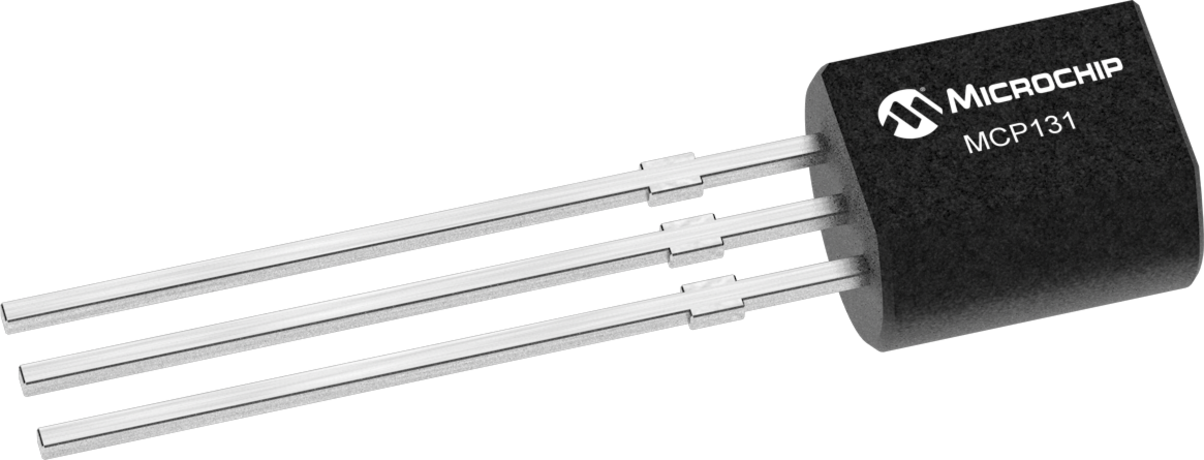

Product Images
