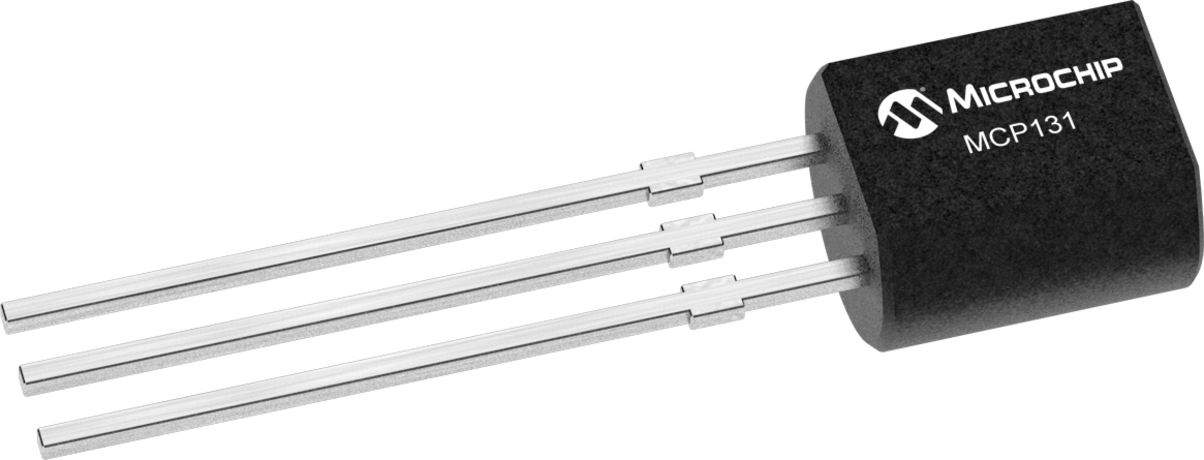

1-channel power supply support circuit, designed for through-hole mounting in a TO-92 package. Features a reset threshold voltage of 4.7V, with a minimum undervoltage threshold of 4.561V. Operates within a supply voltage range of 1V to 5.5V, consuming a maximum supply current of 90µA and a quiescent current of 1µA. Offers an active-low reset with an 80ms reset timeout. This lead-free, RoHS-compliant component is suitable for applications requiring simple reset or power-on reset functionality.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP131-475E/TO datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP131-475E/TO technical specifications.
| Package/Case | TO-92 |
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 4.95mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 4.7V |
| Min Reset Threshold Voltage | 4.561V |
| Max Supply Current | 90uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Through Hole |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 90uA |
| Overvoltage Threshold | 4.7V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Quiescent Current | 1uA |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 80ms |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Threshold Voltage | 4.63V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 4.561V |
| Watchdog Timer | No |
| Width | 3.94mm |
| RoHS | Compliant |
