MCP1316MT-29LE/OT

Datasheet

2.9V Supervisor IC, 10uA, SOT-23-5, Active Low Reset, Watchdog

Microchip

MCP1316MT-29LE/OT

Name: MCP1316MT-29LE/OT Microchip
Brand: Microchip
SKU: MCP1316MT-29LE/OT

2.9V Supervisor IC, 10uA, SOT-23-5, Active Low Reset, Watchdog

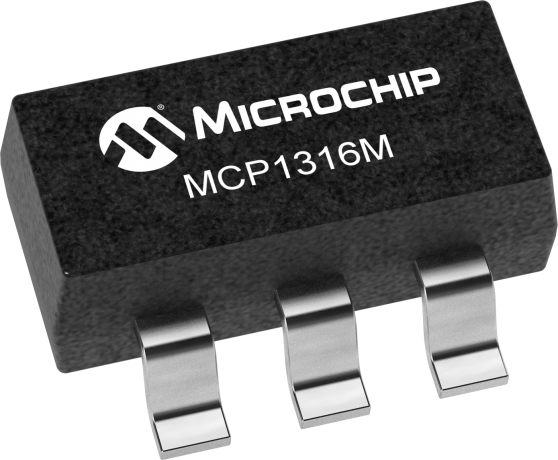

Automotive-grade supervisory circuit with a 2.9V threshold voltage, featuring active-low reset with a 140ms timeout. This surface-mount component operates from 1V to 5.5V, with a maximum supply current of 10µA and a quiescent current of 1µA. It monitors a single voltage, offering undervoltage detection at 2.857V and overvoltage detection at 2.944V. The device includes a watchdog timer and is housed in a compact 5-pin SOT-23-5 package, measuring 3.1mm x 1.8mm x 1.3mm, with a maximum power dissipation of 240mW and an operating temperature range of -40°C to 125°C.

PackageSOT-23-5

Current10uA

MountingSurface Mount

Power240mW

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

Microchip MCP1316MT-29LE/OT technical specifications.

General

Package/Case	SOT-23-5
Height	1.3mm
Lead Free	Lead Free
Length	3.1mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Power Dissipation	240mW
Max Reset Threshold Voltage	2.944V
Min Reset Threshold Voltage	2.857V
Max Supply Current	10uA
Max Supply Voltage	5.5V
Min Supply Voltage	1V
Mount	Surface Mount
Number of Elements	1
Number of Voltages Monitored	1
Operating Supply Current	10uA
Overvoltage Threshold	2.944V
Package Quantity	3000
Packaging	Tape and Reel
Power Dissipation	240mW
Quiescent Current	1uA
Radiation Hardening	No
Reset	Active Low
Reset Timeout	140ms
RoHS Compliant	Yes
Supply Current	10uA
Threshold Voltage	2.9V
Type	Simple Reset/Power-On Reset
Undervoltage Threshold	2.857V
Watchdog Timer	Yes
Width	1.8mm
