1-channel power supply support circuit, SOT-23-3 package. Features a reset threshold voltage range of 1.872V to 1.929V, with an active low reset output. Operates with a supply voltage from 1V to 5.5V and a maximum supply current of 90µA. This surface mount component offers a reset timeout of 80ms and is RoHS compliant.
PackageSOT-23-3
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP131T-195I/TT technical specifications.
General
| Package/Case | SOT-23-3 |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 1.929V |
| Min Reset Threshold Voltage | 1.872V |
| Max Supply Current | 90uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 90uA |
| Overvoltage Threshold | 1.929V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1uA |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 80ms |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Threshold Voltage | 1.9V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 1.872V |
| Watchdog Timer | No |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP131T-195I/TT Datasheet
Download the complete datasheet for Microchip MCP131T-195I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

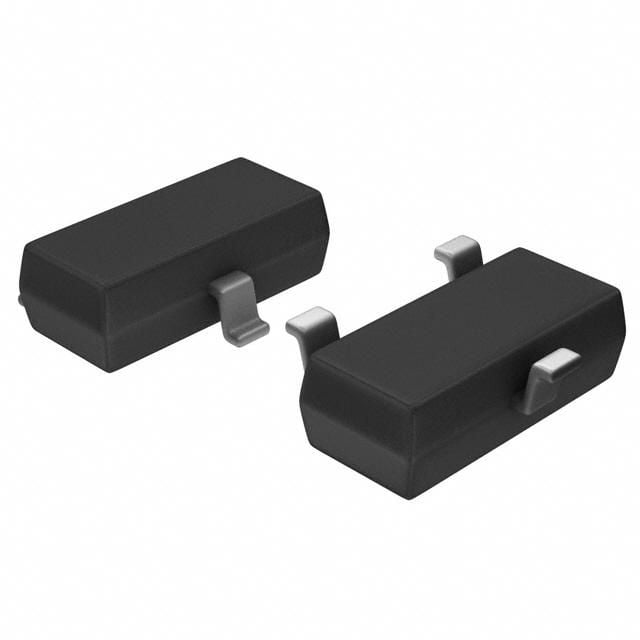

Product Images
