Single-channel, low-side, non-inverting gate driver IC with 500mA maximum output current. Features a 20ns fall time and operates from a 4.5V to 18V supply voltage. Packaged in a compact 5-pin SOT-23 surface-mount case, this component offers a maximum power dissipation of 390mW and a maximum operating temperature of 125°C. Ideal for automotive applications, it is supplied in tape and reel packaging.
PackageSOT-23
Current200uA
MountingSurface Mount
Power390mW
Quick Jump:
Technical Specifications
Microchip MCP1402T-E/OT technical specifications.
General
| Package/Case | SOT-23 |
| Channel Type | Single |
| Fall Time | 20ns |
| Height | 1.3mm |
| Input Bias Current | 10uA |
| Length | 3.1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 390mW |
| Max Supply Current | 1.1mA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 390mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 200uA |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1402T-E/OT Datasheet
Download the complete datasheet for Microchip MCP1402T-E/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

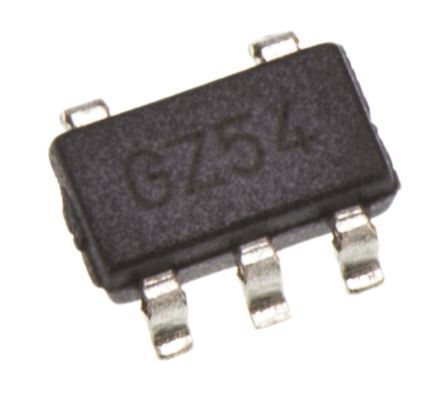

Product Images
