PackageDFN
Current250uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP1406-E/MF technical specifications.
General
Package/Case
DFN
Fall Time
30ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Supply Current
250uA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
1
Number of Outputs
1
Output Current
6A
Package Quantity
60
Packaging
Rail/Tube
Propagation Delay
55ns
RoHS Compliant
Yes
Supply Current
250uA
Turn-Off Delay Time
50ns
Turn-On Delay Time
50ns
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1406-E/MF Datasheet
Download the complete datasheet for Microchip MCP1406-E/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

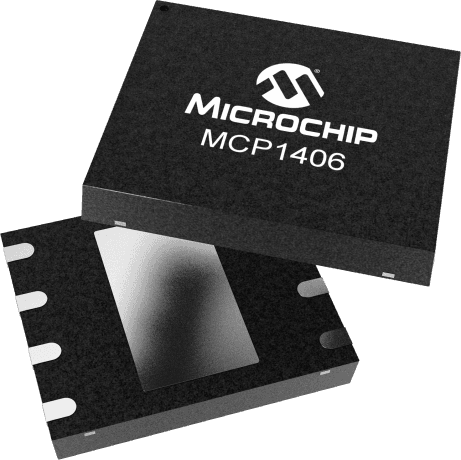

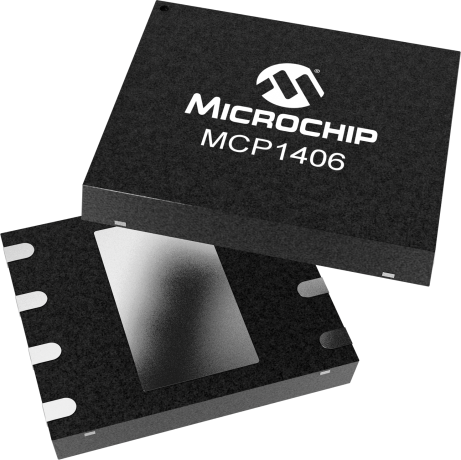

Product Images
