Microchip
MCP14E11T-E/MF
3 A HALF BRDG BASED MOSFET DRIVER, PDSO8, 6 X 5 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, DFN-8
PackageDFN
Current1.8mA
Quick Jump:
Technical Specifications
Microchip MCP14E11T-E/MF technical specifications.
General
Package/Case
DFN
Channel Type
Independent
Fall Time
17ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Supply Current
1.8mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Number of Drivers
2
Number of Outputs
2
Output Current
3A
Package Quantity
3300
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
1.8mA
Compliance
RoHS
Compliant
Datasheet
Microchip MCP14E11T-E/MF Datasheet
Download the complete datasheet for Microchip MCP14E11T-E/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

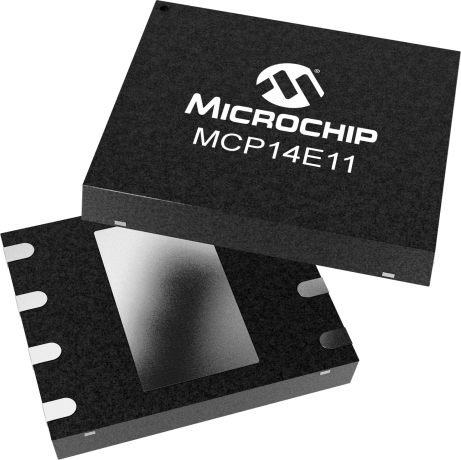

Product Images
