Microchip
MCP1602T-120I/MF
0.5 A SWITCHING REGULATOR, 2400 kHz SWITCHING FREQ-MAX, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP1602T-120I/MF technical specifications.
General
Package/Case
DFN
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
1.2V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
1.2V
Package Quantity
3300
Packaging
Tape and Reel
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1602T-120I/MF Datasheet
Download the complete datasheet for Microchip MCP1602T-120I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

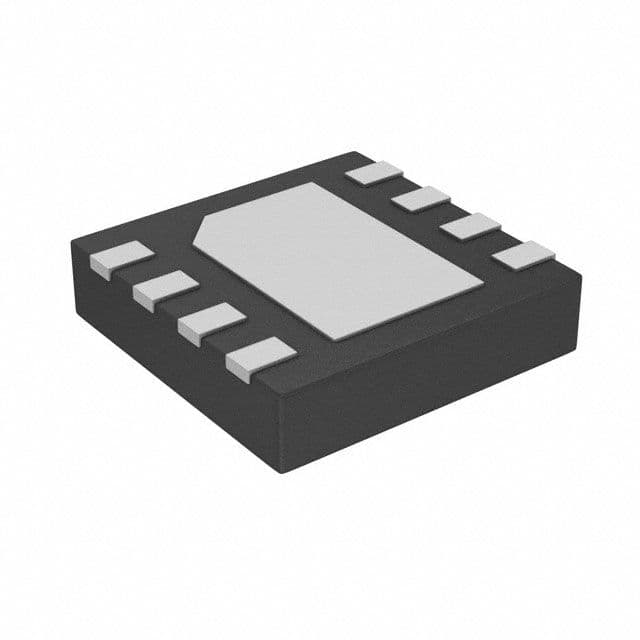

Product Images
