Synchronous DC/DC buck controller IC, featuring a fixed 2.5V output voltage and 500mA maximum output current. Operates with an input voltage range of 2.7V to 5.5V, achieving up to 90% efficiency. This surface mount component is housed in a compact TSOT package, measuring 2.9mm x 1.6mm x 1mm. It boasts a maximum switching frequency of 2.8MHz and is RoHS compliant.
PackageTSOT
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP1603T-250I/OS technical specifications.
General
| Package/Case | TSOT |
| Efficiency | 90% |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Nominal Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 2.8MHz |
| Synchronous Rectifier | Yes |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1603T-250I/OS Datasheet
Download the complete datasheet for Microchip MCP1603T-250I/OS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

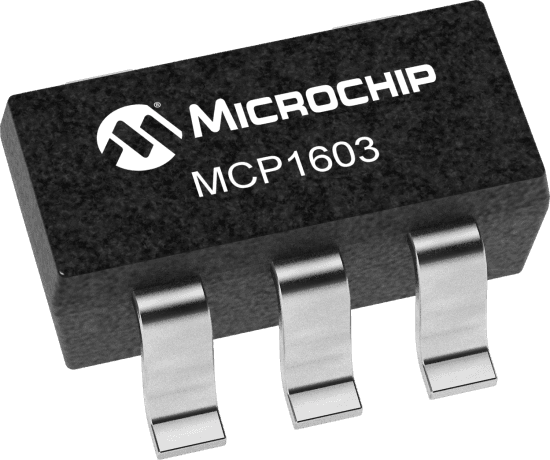

Product Images
