Synchronous buck DC/DC controller and regulator IC, featuring a fixed 3.3V output voltage and up to 3A output current. Achieves 95% efficiency with a maximum switching frequency of 1MHz. Operates from a 6V to 18V input voltage range and supports a maximum duty cycle of 99%. Housed in a compact 3mm x 3mm x 0.95mm VQFN package, this RoHS compliant component is suitable for applications requiring high efficiency and precise voltage regulation.
PackageVQFN
Quick Jump:
Technical Specifications
Microchip MCP16323T-330E/NG technical specifications.
General
| Package/Case | VQFN |
| Efficiency | 95% |
| Height | 0.95mm |
| Isolation | Isolated |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Duty Cycle | 99% |
| Max Input Voltage | 18V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Operating Supply Current | 3A |
| Operating Supply Voltage | 18V |
| Output Current | 3A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 1MHz |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP16323T-330E/NG Datasheet
Download the complete datasheet for Microchip MCP16323T-330E/NG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

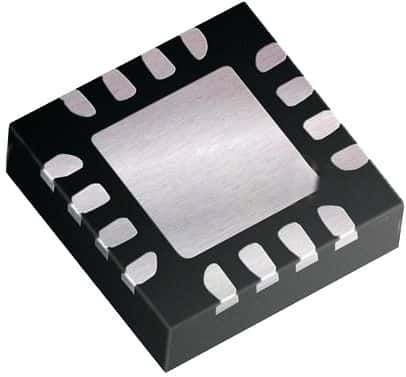

Product Images
