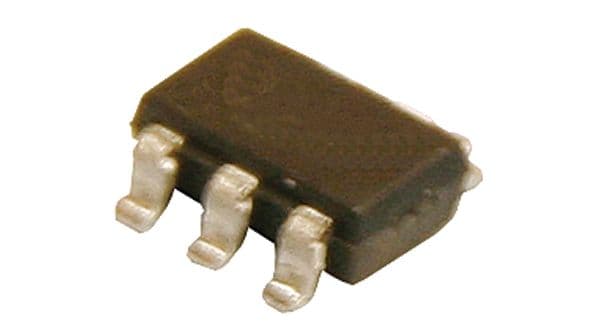

Boost DC/DC controller and regulator featuring a 575kHz maximum switching frequency and 96% efficiency. This integrated circuit offers an adjustable output voltage from 2V to 5.5V, with a maximum output current of 350mA. Operating within a wide input voltage range of 650mV to 5.5V, it is housed in a compact SOT-23-6 package (3.1mm L x 1.8mm W x 1.3mm H). The component supports a single positive output and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP1640DT-I/CHY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP1640DT-I/CHY technical specifications.
| Package/Case | SOT-23-6 |
| Efficiency | 96% |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 650mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 350mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 2V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 350mA |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 575kHz |
| Synchronous Rectifier | Yes |
| Topology | Boost |
| Width | 1.8mm |
| RoHS | Compliant |
