Synchronous boost DC-DC controller with adjustable output voltage from 2V to 5.5V. Features a maximum output current of 350mA and operates with an input voltage range of 0.65V to 5.5V. Achieves up to 96% efficiency with a switching frequency of 575kHz. Housed in a 6-pin SOT-23 package, this RoHS compliant component is supplied on tape and reel.
PackageSOT-23-6
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Microchip MCP1640T-I/CHY technical specifications.
General
Package/Case
SOT-23-6
Efficiency
96%
Height
0.051inch
Lead Free
Lead Free
Length
0.122inch
Max Input Voltage
5.5V
Min Input Voltage
650mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
350mA
Max Output Voltage
5.5V
Min Output Voltage
2V
Min Supply Voltage
350mV
Number of Outputs
1
Output Configuration
Positive
Output Current
350mA
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Switching Frequency-Max
575kHz
Synchronous Rectifier
Yes
Topology
Boost
Voltage Rating
5.5V
Width
0.071inch
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1640T-I/CHY Datasheet
Download the complete datasheet for Microchip MCP1640T-I/CHY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

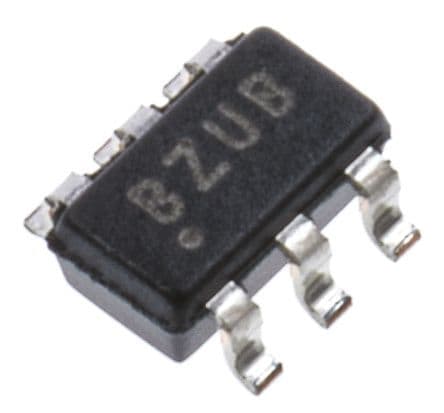

Product Images
