3V fixed positive LDO regulator with 2% output voltage accuracy. Features a 178mV dropout voltage and a maximum output current of 250mA. Operates with a low input bias current of 1.6µA and quiescent current of 4µA. Housed in a SOT-89-3 surface mount package, this RoHS compliant component supports a maximum input voltage of 6V and operates across a temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip MCP1700T-3002E/MB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip MCP1700T-3002E/MB technical specifications.
| Accuracy | 2% |

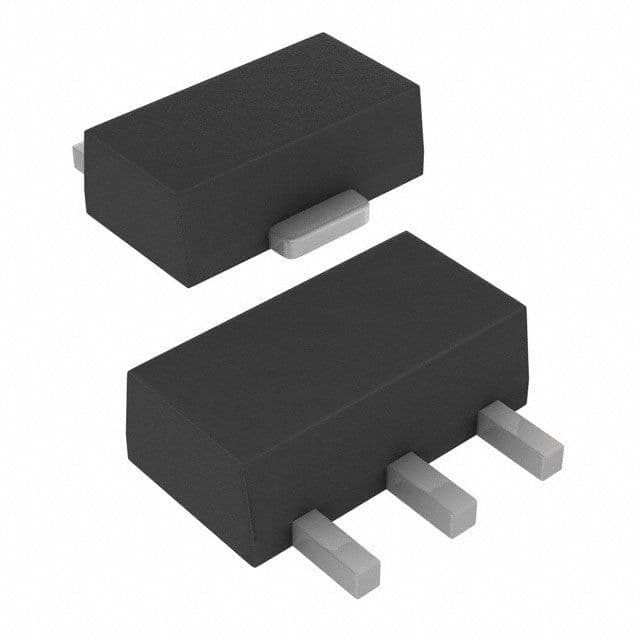

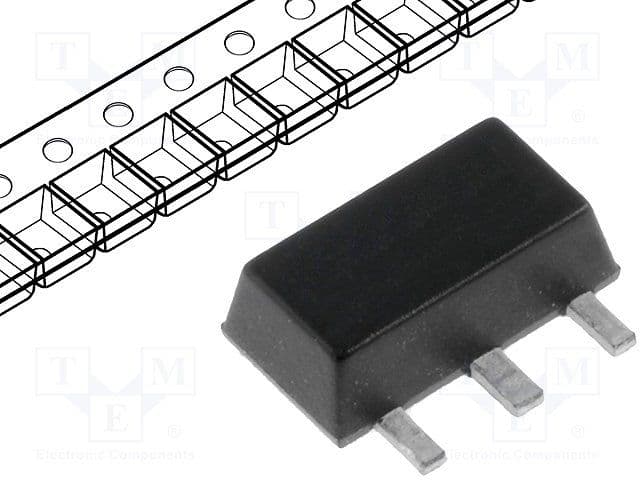

| Package/Case | SOT-89-3 |
| Dropout Voltage | 178mV |
| Height | 0.063inch |
| Input Bias Current | 1.6uA |
| Lead Free | Lead Free |
| Length | 0.181inch |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Min Output Voltage | 3V |
| Max Power Dissipation | 1.635W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 3V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 1.635W |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 4uA |
| Width | 0.102inch |
| RoHS | Compliant |
