Automotive-grade positive linear voltage regulator with a fixed 3V output and 2% accuracy. Features a 250mA maximum output current and a low dropout voltage of 178mV. Operates from a 2.3V to 6V input voltage range, with a maximum power dissipation of 369.6mW. Packaged in a 3-pin SOT-23 surface-mount case, this RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
PackageSOT-23
Current4uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1700T-3002E/TT technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Dropout Voltage
178mV
Height
0.95mm
Input Bias Current
1.6uA
Lead Free
Lead Free
Length
2.9mm
Max Input Voltage
6V
Min Input Voltage
2.3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Max Output Voltage
3V
Min Output Voltage
3V
Max Power Dissipation
369.6mW
Max Supply Voltage
6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Nominal Output Voltage
3V
Number of Channels
1
Number of Outputs
1
Output Current
250mA
Output Type
Fixed
Output Voltage
3V
Output Voltage Accuracy
2%
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
4uA
Termination
SMD/SMT
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP1700T-3002E/TT Datasheet
Download the complete datasheet for Microchip MCP1700T-3002E/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

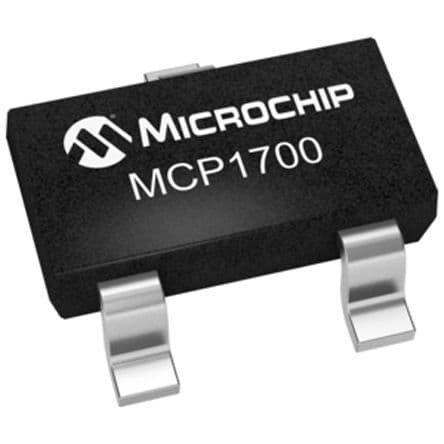

Product Images
